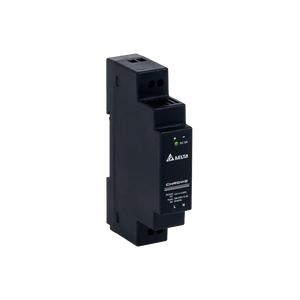

Delta DRC-12V10W1AG 0.83A 12V DIN Rail Power Supply
The Delta DRC-12V10W1AG is a compact 0.83A 12V DIN Rail Power Supply offering 9.96W output for industrial control panels, automation systems, and process equipment. It operates with a nominal input voltage of 100-240Vac and a wide input range of 90-264Vac at 50-60Hz for stable DC conversion. Manufactured by Delta industrial automation products, this model belongs to Delta power supply solutions and is part of the DIN Rail Chrome Series, designed to provide reliable and continuous power in compact industrial applications.
| Output Current | Delta |
| Product Type | SMPS |
| Product | DRC-12V10W1AG |
Delta 0.83A 12V DIN Rail Power Supply DRC-12V10W1AG Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 0.83A |
| Output Voltage | 12V |
| Output Power | 9.96W |
| Line Regulation | < 0.5% (@ 90-264Vac input, 100% load) |
| Load Regulation | < 1.0% (@ 90-264Vac input, 0-100% load) |
| PARD | < 100mVpp |
| Start-up Time | < 3,000ms @ nominal input (100% load) |
| Hold-up Time | > 10ms @ 115Vac, > 60ms @ 230Vac (100% load) |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 5% @ 90-264Vac input, 10-100% load (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 100Hz) |
| Start-up with Capacitive Loads | 3,000μF Max |
| Rise Time | < 70ms @ nominal input (100% load) |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 90-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 125-375Vdc |
| Input Current | < 0.30A @ 115Vac, < 0.20A @ 230Vac |
| Efficiency at 100% load | > 82.0% @ 115Vac, > 80.5% @ 230Vac |
| Inrush Current | < 15A @ 115Vac, < 30A @ 230Vac |
| Leakage Current | < 0.25mA @ 240Vac |
| Power Dissipation | 0% load: < 0.15W @ 115Vac & 230Vac 100% load: < 2.18W @ 115Vac, < 2.40W @ 230Vac |
| Case Chassis / Cover | Plastic |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Input Terminal | M4 x 2 Pins (Rated 300V/16A) |
| Output Terminal | M4 x 2 Pins (Rated 300V/16A) |
| Noise Sound Pressure Level (SPL) | < 25dBA |
| Mounting Rail | Standard TS35 DIN Rail in accordance with EN 60715 |
| Wire | Input / Output: AWG 24-12 |
| Unit Weight | 0.06 kg (0.13 lb) |
| Vibration (Operating) | IEC 60068-2-6, Sine Wave: 10-500Hz @ 19.6m/S² (2G peak); 10 min per cycle, 60 min for all X, Y, Z directions |
| Shock Test (Operating) | IEC 60068-2-27, Half Sine Wave: 4G for a duration of 22ms, 3 shocks for each 3 directions, 9 times in total |
| Operating Temperature | -25°C to +71°C |
| Storage Temperature | -25°C to +85°C |
| Power De-rating | > 55°C de-rate power by 2.5% / °C |
| Operating Humidity | 5 to 95% RH (Non-Condensing) |
| Operating Altitude | 0 to 2,000 Meters (6,560 ft.) |
| Pollution Degree | 2 |
| Over Voltage Category | II |
The Delta DRC-12V10W1AG is ideal for integration into control cabinets, machine automation setups, and small industrial equipment requiring dependable 12V DC power. Its DIN rail mounting design allows organized installation, while the Green LED DC OK indicator offers clear operational status for efficient monitoring. The input and output terminals are rated for secure and safe connections, ensuring reliable power delivery to connected devices.
Engineered for harsh industrial conditions, this 0.83A 12V DIN Rail Power Supply operates effectively across an ambient temperature range from -25°C to +71°C, with a storage range of -25°C to +85°C. The unit maintains stable DC output under varying input voltages and load conditions, making it suitable for continuous industrial operations and compact equipment applications.
For industries and small-scale automation requiring a reliable and efficient DC power source, the Delta DRC-12V10W1AG delivers stable performance, compact form factor, and operational reliability. Request a quote today to benefit from competitive pricing and dedicated support, ensuring seamless power distribution for industrial control systems, automation devices, and other critical equipment.
