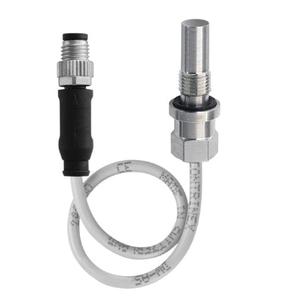

Contrinex DW-AV-703-P12G-276 Inductive Sensor
The Contrinex DW-AV-703-P12G-276 Inductive Sensors offers 1.5 mm operating range, 10...30 Supply voltage, Normally Open (NO)/IO-Link output, PUR, 0.2 m, 3 wire + M12 4-pin Connection. Manufactured by Contrinex under the Contrinex Inductive Sensors category, this model belongs to the Contrinex DW Series.
| Brand | Contrinex |
| Product Type | Inductive Sensor |
| Model Number | DW-AV-703-P12G-276 |
Contrinex DW-AV-703-P12G-276 Inductive Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Operating range | 1.5 mm |
| Switching frequency max. | 850 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | Normally Open (NO)/IO-Link |
| Connection | PUR, 0.2 m, 3 wire + M12 4-pin |
| Housing size [mm] | M12 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | Stainless-steel V4A |
| Temperature range | -25...+85Β°C |
| Sensor Height | 48.5 mm |
| Mounting | Embeddable |
| Interface | IO-Link |
| Operating pressure [bar] | β€ 500 bar |
