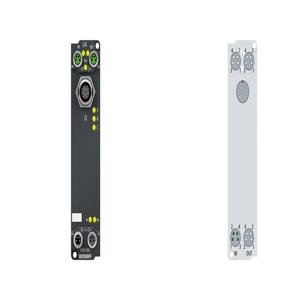

EP5101-1002 - Beckhoff EtherCAT Box Position Measurement
EP5101-1002 Beckhoff EtherCAT Box Position Measurement Technical Specifications
| Brand | Beckhoff |
| Product Type | EtherCAT Box Position Measurement |
| Product | EP5101-1002 |
EP5101-1002 Beckhoff EtherCAT Box Position Measurement Technical Specifications
| Specification | Value |
|---|---|
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Current consumption from US | typ. 130 mA + sensor supply |
| Electrical isolation | 500 V |
| Weight | approx. 165 g |
| Operating temperature | 0...55ยฐC |
| Storage temperature | -25...+85ยฐC |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL, ATEX, IECEx |
| Ex marking | ATEX:II 3 G Ex ec IIC T4 GcII 3 D Ex tc IIIC T135 รยฐC DcIECEx:Ex ec IIC T4 GcEx tc IIIC T135 รยฐC Dc |
| Housing - Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Housing - Material | PA6 (polyamide) |
| Housing - Installation | 2 fixing holes 3.5 mm diameter for M3 |
| Number of channels | 1 |
| Connection technology | M12 socket, 8-pin |
| Nominal voltage | 24 V DC (-15%/+20%) |
