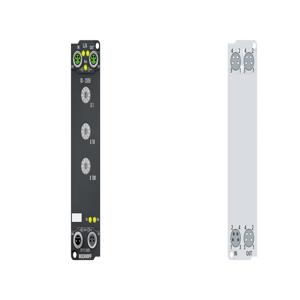

EP1111-0000 - Beckhoff EtherCAT Box System
EP1111-0000 Beckhoff EtherCAT Box System Technical Specifications
| Brand | Beckhoff |
| Product Type | EtherCAT Box System |
| Product | EP1111-0000 |
EP1111-0000 Beckhoff EtherCAT Box System Technical Specifications
| Specification | Value |
|---|
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Weight | approx. 165 g |
| Operating temperature | -25...+60°C |
| Storage temperature | -40...+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL, ATEX, IECEx |
| Ex marking | ATEX:II 3 G Ex ec IIC T4 GcII 3 D Ex tc IIIC T135 °C DcIECEx:Ex ec IIC T4 GcEx tc IIIC T135 °C Dc |
| Housing - Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Housing - Material | PA6 (polyamide) |
| Housing - Installation | 2 fixing holes 3.5 mm diameter for M3 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Data transfer rates | 100 Mbit/s |
