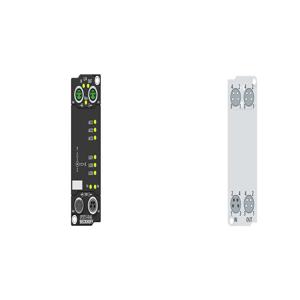

EP3751-0160 - Beckhoff EtherCAT Box Analog Input
EP3751-0160 Beckhoff EtherCAT Box Analog Input Technical Specifications
| Brand | Beckhoff |
| Product Type | EtherCAT Box Analog Input |
| Product | EP3751-0160 |
EP3751-0160 Beckhoff EtherCAT Box Analog Input Technical Specifications
| Specification | Value |
|---|---|
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Number of inputs | 1 x 3 axis acceleration |
| Input connections | internal sensors |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Sensor supply | from control voltage US |
| Current consumption from US | typ. 100 mA |
| Electrical isolation | 500 V |
| Operating temperature | -25...+60Β°C |
| Storage temperature | -40...+85Β°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Housing - Dimensions (W x H x D) | 30 mm x 86 mm x 22 mm |
| Housing - Material | PA6 (polyamide) |
| Housing - Installation | 2 fixing holes 3.5 mm diameter for M3 |
| Special features | very low noise, temperature compensation |
| Sensors | MEMS 3-axis accelerometer |
| Measurement error/uncertainty | < ΓΒ±8 % (the sensor can be calibrated more precisely by user adjustment) |
| Nominal voltage | 24 V DC (-15%/+20%) |
