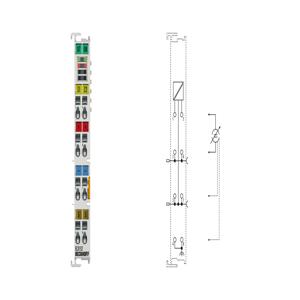

EL3152 - Beckhoff EtherCAT Terminal Analog Input

Technical Specifications of Beckhoff EtherCAT Terminal Analog Input EL3152:

SpecValue
BrandBeckhoff
Product TypeEtherCAT Terminal Analog Input
ProductEL3152

EL3152 Beckhoff EtherCAT Terminal Analog Input Technical Specifications

SpecificationValue
Number of inputs2 (single-ended)
Measurement error/uncertaintytyp. 85 Ω + diode voltage
Input filter limit frequency5 kHz
Dielectric strengthmax. 30 V
Measurement error/uncertainty 2< ±0.3% (relative to full scale value)
Housing - Design formcompact terminal housing with signal LEDs
Housing - Materialpolycarbonate
Housing - Dimensions (W x H x D)12Â mm x 100Â mm x 68 mm
Housing - Installationon 35 mm DIN rail, conforming to EN 60715 with lock
Housing - Side by side mounting by means ofdouble slot and key connection
Housing - Markinglabeling of the BZxxxx series
Housing - Wiringsolid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Housing - Connection cross-sections*: 0.0..2.5 mm²,st*: 0.08..2.5 mm²,f*: 0.14...1.5 mm²
Housing - Connection cross-section AWGs*: AWG28...14,st*: AWG28...14,f*: AWG26...16
Housing - Stripping length8…9 mm
Housing - Current load power contactsImax: 10 A
Power supplyvia the E-bus
Distributed clocksyes
Conversion time~ 60 µs (fast mode ~ 40 µs)
Electrical isolation500 V (E-bus/signal voltage)
Current consumption E-bustyp. 170 mA
Bit width in the process imageinputs: 8 byte
Special featuresstandard and compact process image, activatable FIR/IIR filters, limit value monitoring
Weightapprox. 60 g
Operating temperature-25…+60°C
Storage temperature-40…+85°C
Relative humidity95%, no condensation
Vibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.IP20/variable
Approvals/markingsCE, CCC, UL, ATEX, IECEx, cFMus
Ex markingATEX:Â Â II 3G Ex ec IIC T4 GcIECEx:Â Â Ex ec IIC T4 GccFMus:Â Â Class I, Division 2, Groups A, B, C, DÂ Â Class I, Zone 2, AEx ec IIC T4 Gc
Pluggable wiringfor all ESxxxx terminals
Signal current4...20 mA
