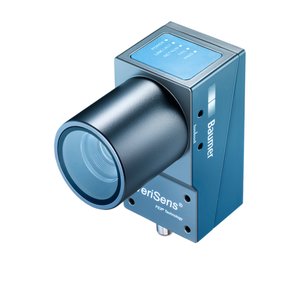

Home Baumer Vision Sensor VS XC700M20X00IP Baumer VS XC700M20X00IP Vision Sensor The Baumer VS XC700M20X00IP Vision Sensor offers a - object distance, 5 outputs, Pass / Fail, Flash Sync, Alarm, Camera Ready, Output Enable . Manufactured by Baumer under the Baumer Vision Sensor category, this model belongs to the VS Series.
Brand Baumer Product Type Vision Sensor Model Number VS XC700M20X00IP
Baumer VS XC700M20X00IP Vision Sensor – Technical Specifications Specification Value Resolution 1600 × 1200 px Sensor type 1/1.8″ CCD, monochrome High-resolution mode max. 21 inspections per second Defect image memory 4 Lens C-mount Nominal voltage power supply 24 V ±25 % Power consumption Max. 42 W (with I/O and lighting) Inputs 8 … 30 V (polarity protected) Digital inputs 5 inputs, trigger, job selection, external teach-in, encoders (CH-A, CH-B) 500 kHz Outputs PNP Ipeak = 100 mA and Ieff = 50 mA (short-circuit proof) Digital outputs 5 inputs, trigger, job selection, external teach-in, encoders (CH-A, CH-B) 500 kHz Width 53 mm (without lens/tube) Height 99.5 mm (without lens/tube) Depth 49.8 mm (without lens/tube) Weight ≤ 300 g (without lens/tube) Material housing: aluminum, cover glass XC tube: PMMA Storage temperature -20 … +70 °C Humidity 0 … 90 % (non-condensing) Protection class IP 67 (with tube) Flash memory size 2000 Mbit Flash S34ML02G100BHI0000 High-speed mode (limited resolution) max. 35 inspections per second
