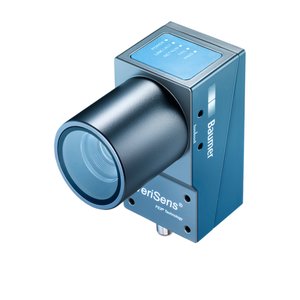

Baumer VS XC700M12X00IP Vision Sensor
The Baumer VS XC700M12X00IP Vision Sensor offers a - object distance, 5 outputs, Pass / Fail, Flash Sync, Alarm, Camera Ready, Output Enable. Manufactured by Baumer under the Baumer Vision Sensor category, this model belongs to the VS Series.
| Brand | Baumer |
| Product Type | Vision Sensor |
| Model Number | VS XC700M12X00IP |
Baumer VS XC700M12X00IP Vision Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Resolution | 1280 × 960 px |
| Sensor type | 1/3″ CCD, monochrome |
| High-resolution mode | max. 32 inspections per second |
| Defect image memory | 8 |
| Lens | C-mount |
| Nominal voltage power supply | 24 V ±25 % |
| Power consumption | Max. 42 W (with I/O and lighting) |
| Inputs | 8 … 30 V (polarity protected) |
| Digital inputs | 5 inputs, trigger, job selection, external teach-in, encoders (CH-A, CH-B) 500 kHz |
| Outputs | PNP Ipeak = 100 mA and Ieff = 50 mA (short-circuit proof) |
| Digital outputs | 5 inputs, trigger, job selection, external teach-in, encoders (CH-A, CH-B) 500 kHz |
| Width | 53 mm (without lens/tube) |
| Height | 99.5 mm (without lens/tube) |
| Depth | 49.8 mm (without lens/tube) |
| Weight | ≤ 300 g (without lens/tube) |
| Material | housing: aluminum, cover glass XC tube: PMMA |
| Storage temperature | -20 … +70 °C |
| Humidity | 0 … 90 % (non-condensing) |
| Protection class | IP 67 (with tube) |
| Flash memory size | 2000 Mbit Flash S34ML02G100BHI0000 |
| High-speed mode (limited resolution) | max. 54 inspections per second |
