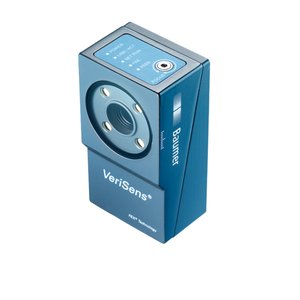

Baumer VS XF700M03W12IP Vision Sensor

Name: Baumer VS XF700M03W12IP Vision Sensor
Brand: Baumer
SKU: VS XF700M03W12IP
Rating: 4.7 (20 reviews)

The VS XF700M03W12IP vision sensor delivers 752 x 480 resolution, monochrome CMOS imaging, and integrated LED illumination for industrial inspection applications. The Baumer VS XF700M03W12IP is a Vision Sensor from the XF700 Series, offering 50–450 mm operating distance, FEX® 4.0 processing, M12 connectivity, Ethernet communication, 360° object recognition, and support for 23 inspection checks.

Datasheet

Brand	Baumer
Product Type	Vision Sensor
Model Number	VS XF700M03W12IP

Baumer VS XF700M03W12IP Vision Sensor – Technical Specifications

Specification	Value
Resolution	752 × 480 px
Sensor type	1/3″ CMOS, monochrome
High-resolution mode	max. 50 inspections per second
Object distance min	50 mm
Object distance max	450 mm
Defect image memory	32
Lens	12 mm
Nominal voltage power supply	24 V ±25 %
Power consumption	Max. 18 W (with I/O)
Inputs	8 … 30 V (polarity protected)
Digital inputs	5 inputs, trigger, job selection, external teach-in, encoders (CH-A, CH-B) 500 kHz
Outputs	PNP Ipeak = 100 mA and Ieff = 50 mA (short-circuit proof)
Digital outputs	5 inputs, trigger, job selection, external teach-in, encoders (CH-A, CH-B) 500 kHz
Width	53 mm
Height	99.5 mm
Depth	38 mm
Weight	≤ 250 g
Material	housing: aluminum, cover glass: PMMA
Storage temperature	-20 … +70 °C
Humidity	0 … 90 % (non-condensing)
Protection class	IP 67
Flash memory size	2000 Mbit Flash S34ML02G100BHI0000
High-speed mode (limited resolution)	max. 100 inspections per second
