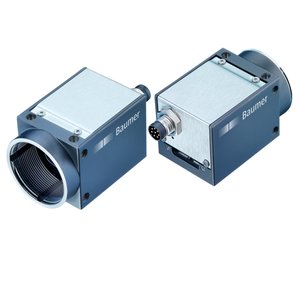

Baumer VCXU-24M Industrial Camera
The Baumer VCXU-24M Industrial Camera offers a 72.9 dB dynamic range, Global shutter, C-mount, and Sony IMX249 Gen1 connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
| Brand | Baumer |
| Product Type | Industrial Camera |
| Model Number | VCXU-24M |
Baumer VCXU-24M Industrial Camera β Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Sony IMX249 Gen1 |
| Mono/Color | Mono |
| Sensor type | 1/1.2" CMOS |
| Shutter type | Global shutter |
| Resolution | 1920 Γ 1200 px |
| Pixel size | 5.86 Γ 5.86 Β΅m |
| Exposure time | 0.057 β¦ 60000 ms |
| Dark noise | 6.24 e- |
| Saturation capacity | 31604 e- |
| Dynamic range | 72.9 dB |
| Signal-to-noise ratio | 45 dB |
| Quantum efficiency | 68.4 % @ 536 nm |
| Image formats, interface frame rate max. | Full Frame, 1920 Γ 1200 px, max. 38 fps, Binning 2Γ2, 960 Γ 600 px, max. 38 fps, Binning 2Γ1, 960 Γ 1200 px, max. 38 fps, Binning 1Γ2, 1920 Γ 600 px, max. 38 fps |
| Image formats, aquisition frame rate max. (Burst Mode) | Full Frame, 1920 Γ 1200 px, max. 38 fps, Full Frame, 1920 Γ 1200 px, max. 38 fps, Full Frame, 1920 Γ 1200 px, max. 38 fps |
| Pixel formats | Mono8, Mono10, Mono12, Mono12 Packed |
| Analog controls | Gain (0 β¦ 48 dB), Offset (0 β¦ 255 LSB 12 Bit) |
| Color models | Mono |
| Basic Functions | Exposure, Gain, Trigger / Exposure Active (Flash), Binning 2x2, Partial Scan, Offset, Free Running Mode (Live Image) |
| Auto Functions | Exposure Auto, Gain Auto |
| Image Pre-processing | Image Flipping (X/Y), LUT / Gamma |
| Acquisition / Interface | Burst Mode, Adjustable Framerate, Device Link Throughput Limit, Internal Image Buffer |
| Synchronization | free running, trigger |
| Trigger sources | Hardware, Software |
| Trigger delay | 0 β¦ 2 sec, tracking and buffering of up to 256 trigger signals |
| Process Synchronization | Events, Timer, Trigger Delay, Debouncer, Counter, Sequencer, Trigger via Action CMD (GigE), Additional Output Modes (e.g. Trigger Ready), Chunk data inside transferred image, Encoder support via Counter End trigger source |
| Additional Functions | User Set, Integrated temperature sensor, Readable additional information (e.g. sensor information) |
| Internal image buffer | 469 MB, 71 images (Trigger Mode), 1 image (Free Running Mode) |
| Data interface | USB 3.0, Transfer Rate 5000 Mbits/sec, Connector: USB 3.0 Micro B |
| Process interface | M8 / 8 pins (SACC-DSI-M8MS-8CON-M8-L180) |
| Power supply | via USB 3.0 interface |
| Lens mount | C-mount |
| Width | 29 mm |
| Height | 29 mm |
| Depth | 38 mm |
| Weight | β€ 90 g |
| Material | zinc die casting, baked varnish (until 02-2020 nickel-chrome-plated), IP 40 |
| Power consumption | Approx. 2.4 W @ 38 fps |
| Flash memory size | 128 kB |
| Operating temperature | 0 β¦ +65 Β° @ T = measurement point |
| Storage temperature | -20 β¦ +70 Β°C |
| Humidity | 10 β¦ 90 % (non-condensing) |
| Protection class | IP 40 (with mounted lens and cable) |
| Lines | 1 input line, 1 output line, 2 general purpose lines |
