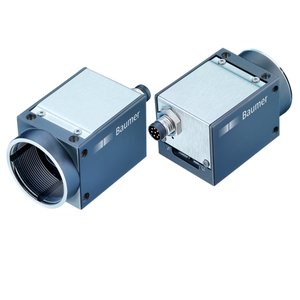

Home Brands Baumer Industrial Camera VCXU-23M Baumer VCXU-23M Industrial Camera The Baumer VCXU-23M Industrial Camera offers a 72.2 dB dynamic range, Global shutter , C-mount , and Sony IMX174 Gen1 connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
Brand Baumer Product Type Industrial Camera Model Number VCXU-23M
Baumer VCXU-23M Industrial Camera – Technical Specifications Specification Value Sensor Sony IMX174 Gen1 Mono/Color Mono Sensor type 1/1.2" CMOS Shutter type Global shutter Resolution 1920 × 1200 px Pixel size 5.86 × 5.86 µm Exposure time 0.045 … 60000 ms Dark noise 6.94 e- Saturation capacity 31693 e- Dynamic range 72.2 dB Signal-to-noise ratio 45 dB Image formats, interface frame rate max. Full Frame, 1920 × 1200 px, max. 159 fps, Binning 2×2, 960 × 600 px, max. 166 fps, Binning 2×1, 960 × 1200 px, max. 166 fps, Binning 1×2, 1920 × 600 px, max. 166 fps Image formats, aquisition frame rate max. (Burst Mode) Full Frame, 1920 × 1200 px, max. 166 fps Pixel formats Mono8, Mono10, Mono12, Mono12 Packed Analog controls Gain (0 … 48 dB), Offset (0 … 255 LSB 12 Bit) Color models Mono Internal image buffer 469 MB, 71 images (Trigger Mode), 1 image (Free Running Mode) Process interface M8 / 8 pins (SACC-DSI-M8MS-8CON-M8-L180) Power supply via USB 3.0 interface Lens mount C-mount Width 29 mm Height 29 mm Depth 38 mm Weight ≤ 90 g Material zinc die casting, baked varnish (until 02-2020 nickel-chrome-plated), IP 40 Power consumption Approx. 2.8 W @ 159 fps Flash memory size 128 kB Operating temperature 0 … +65 ° @ T = measurement point Storage temperature -20 … +70 °C Humidity 10 … 90 % (non-condensing) Protection class IP 40 (with mounted lens and cable)
