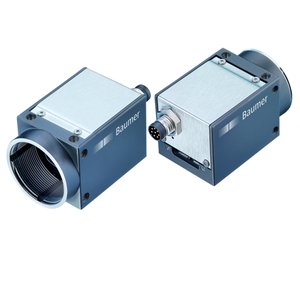

Baumer VCXG-127M.I Industrial Camera
The Baumer VCXG-127M.I Industrial Camera offers a 69.7 dB dynamic range, Global shutter, C-mount, and Sony IMX545 Gen4 connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
| Brand | Baumer |
| Product Type | Industrial Camera |
| Model Number | VCXG-127M.I |
Baumer VCXG-127M.I Industrial Camera β Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Sony IMX545 Gen4 |
| Mono/Color | Mono |
| Sensor type | 1/1.1" CMOS |
| Shutter type | Global shutter |
| Resolution | 4096 Γ 2992 px |
| Pixel size | 2.74 Γ 2.74 Β΅m |
| Exposure time | 0.001 β¦ 60000 ms |
| Dark noise | 2.33 e- |
| Saturation capacity | 9087 e- |
| Dynamic range | 69.7 dB |
| Signal-to-noise ratio | 39.6 dB |
| Quantum efficiency | 65.1 % @ 535 nm |
| Image formats, interface frame rate max. | Full Frame, 4096 Γ 2992 px, max. 10 fps, Binning 2Γ2, 2048 Γ 1496 px, max. 36 fps, Binning 2Γ1, 2048 Γ 2992 px, max. 11 fps, Binning 1Γ2, 4096 Γ 1496 px, max. 11 fps |
| Image formats, aquisition frame rate max. (Burst Mode) | Full Frame, 4096 Γ 2992 px, max. 11 fps |
| Pixel formats | Mono8, Mono10, Mono12, Mono12 Packed |
| Analog controls | Gain (0 β¦ 48 dB), Offset (0 β¦ 255 LSB 12 Bit) |
| Color models | Mono |
| Basic Functions | Exposure, Gain, Trigger / Exposure Active (Flash), Binning 2x2, Partial Scan, Offset, Free Running Mode (Live Image) |
| Auto Functions | Exposure Auto, Gain Auto |
| Image Pre-processing | Image Flipping (X/Y), LUT / Gamma |
| Acquisition / Interface | Burst Mode, Adjustable Framerate, Device Link Throughput Limit, Internal Image Buffer |
| Synchronization | free running, trigger |
| Trigger sources | Hardware, Software, ActionCommand |
| Trigger delay | 0 β¦ 2 sec, tracking and buffering of up to 256 trigger signals |
| Process Synchronization | Events, Timer, Trigger Delay, Debouncer, Counter, Sequencer, Trigger via Action CMD (GigE), Additional Output Modes (e.g. Trigger Ready), PWM (PWM Duration / PWM Duty Cycle), 4 power outputs with up to 120 W (max. 48 V / 2.5 A), Selectable Output format (e.g. Tri State, Push Pull), Chunk data inside transferred image, Encoder support via Counter End trigger source |
| Additional Functions | User Set, Integrated temperature sensor, Readable additional information (e.g. sensor information), Save Custom Data |
| Internal image buffer | 141 MB, 4 image (Trigger Mode), 1 image (Free Running Mode) |
| Data interface | Gigabit Ethernet, Transfer rate 1000 Mbits/sec, Fast Ethernet, Transfer rate 100 Mbits/sec, Connector: M12 / 8 pol x-coded, screwable type |
| Process interface | M12 / 12 pins a-coded (SACC-CI-M12MS-12CON-L180) |
| Power supply | via M12/12 pins a-coded or Power over Ethernet (PoE) |
| Lens mount | C-mount |
| Width | 40 mm |
| Height | 40 mm |
| Depth | 50.8 mm |
| Weight | β€ 137 g |
| Material | aluminum, hard-anodized |
| Voltage supply range +Vs | 12 β¦ 24 V DC (external power supply), 36 β¦ 57 V DC (Power over Ethernet) |
| Power consumption | Approx. 2.6 W @ 12 VDC and 10 fps, Approx. 3.2 W @ 48 VDC (PoE) and 10 fps |
| Flash memory size | 128 kB |
| Operating temperature | 0 β¦ +65 Β° @ T = measurement point |
| Storage temperature | -20 β¦ +70 Β°C |
| Humidity | 10 β¦ 90 % (non-condensing) |
| Protection class | IP 40 (with mounted lens and cable), IP 54 (with mounted lens and cable), IP 65 (with mounted tube and cable), IP 67 (with mounted tube and cable), IP 69K (with stainless steel housing accessory) |
| Lines | 4 input lines, 4 power output lines with pulse width modulation (PWM) (max. 48 V / max. 2,5 A) |
| Output line sources | Off, Line 0-3, Exposure Active, Timer1Active, Readout Active, UserOutput 1-4, TriggerReady |
