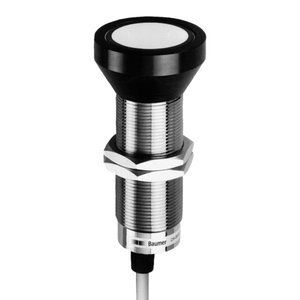

Baumer UNAM 50N3721/S14: Level Sensors
Technical Specifications of Baumer UNAM 50N3721/S14 10232794:
| Voltage supply range +Vs | 12 … 30 VDC |
| Output circuit | NPN break function (NC) |
| Output current | 200 mA |
Baumer Level Sensors UNAM 50N3721/S14 Technical Specifications
| Specification | Value |
|---|---|
| Output indicator | LED green |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption max. (no load) | 35 mA |
| Output circuit | NPN break function (NC) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Connection types | Connector M12 |
| Operating temperature | -25 … +60 °C |
| Protection class | IP 67 |
| Scanning range Sd | 350 … 2500 mm |
| Scanning range far limit Sde | 350 … 2500 mm |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 1 mm |
| Temperature drift | < 0,18 % Sde/K |
| Sonic frequency | 120 kHz |
| Adjustment | Potentiometer |
| Residual ripple | < 10 % Vs |
| Width / diameter | 30 mm |
| Height / length | 95 mm |
| Alignment aid | Target indication flashing |
| Response time ton | < 160 ms |
| Release time toff | < 160 ms |
