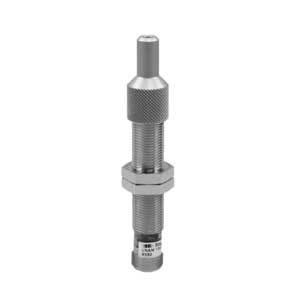

Baumer UNAM 12U9914/S14D Ultrasonic Distance Sensor
The Baumer UNAM 12U9914/S14D Ultrasonic Distance Sensor offers a Cylindrical threaded design, 2 ... 82 mm scanning range, Voltage output output, and Connector M12 connection. Manufactured by Baumer under the Baumer Ultrasonic Distance Sensor category, this model belongs to the UNAM Series.
| Brand | Baumer |
| Product Type | Ultrasonic Distance Sensor |
| Product | UNAM 12U9914/S14D |
Baumer UNAM 12U9914/S14D Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Scanning range Sd | 2 ... 82 mm |
| Version | - |
| Hysteresis typ. | - |
| Repeat accuracy | 0.5 mm |
| Response time ton | < 30 ms |
| Release time toff | < 30 ms |
| Sonic frequency | 380 kHz |
| Adjustment | External Teach-in |
| Light indicator | Yellow LED / red LED |
| Power on indication | - |
| Alignment measuring axis | - |
| Voltage supply range +Vs | 15 β¦ 30 VDC |
| Output circuit | Voltage output |
| Output current | 20 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Interface | - |
| Baud rate | - |
| Cycle time | - |
| Process data length | - |
| IO-Link port type | - |
| IO-Link | - |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Width / diameter | 12 mm |
| Height / length | 88 mm |
| Depth | - |
| Connection types | Connector M12 |
| Operating temperature | -10 β¦ +60 Β°C |
| Protection class | IP 67 |
Mail Us for your needs in Baumer Short Range Ultrasonic Distance Sensor 10151802 part no: 10 with budget-friendly prices. The Main Technical Parameters of UNAM 12U9914/S14D, 10151802 include sensor operates within a range of 2 ... 82 mm, with an accuracy of 0.5 mm. It features a fast response time of < 30 ms and operates at a frequency of 380 kHz. The sensor supports External Teach-in for easy setup and includes Yellow LED / red LED indicators for status monitoring. It operates on a 15 β¦ 30 VDC power supply and provides a Voltage output with a current consumption of 20 mA. The sensor is housed in a Cylindrical threaded body made of Brass nickel plated, measuring 12 mm in diameter and 88 mm in length. It includes an Connector M12 and is rated IP 67, ensuring protection against dust and water. The sensor operates reliably in temperatures from -10 β¦ +60 Β°C. Customize Your Experience with a Quote for your requirement of Baumer Short Range Ultrasonic Distance Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
