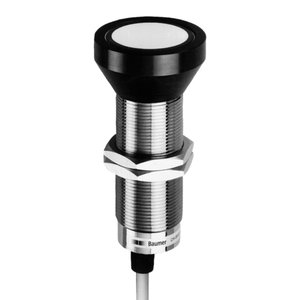

Baumer UNAM 50I6121: Level Sensors
Technical Specifications of Baumer UNAM 50I6121 10134142:
| Voltage supply range +Vs | 15 β¦ 30 VDC |
| Output circuit | Current output |
| Output current | 20 mA |
Baumer Level Sensors UNAM 50I6121 Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply range +Vs | 15 β¦ 30 VDC |
| Current consumption max. (no load) | 55 mA |
| Output circuit | Current output |
| Output current | 20 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Connection types | Cable, L=2 m |
| Operating temperature | -10 β¦ +60 Β°C |
| Protection class | IP 67 |
| Scanning range Sd | 400 β¦ 2500 mm |
| Scanning range close limit Sdc | 400 β¦ 2500 mm |
| Scanning range far limit Sde | 400 β¦ 2500 mm |
| Repeat accuracy | 1 mm |
| Resolution | < 0.3 mm |
| Temperature drift | < 2 % Sde |
| Sonic frequency | 120 kHz |
| Adjustment | Teach-in |
| Light indicator | Yellow LED / red LED |
| Output signal | 4 ... 20 mA / 20 ... 4 mA |
| Residual ripple | < 10 % Vs |
| Width / diameter | 30 mm |
| Height / length | 95 mm |
| Alignment aid | Target indication flashing |
| Response time ton | < 160 ms |
| Release time toff | < 160 ms |
