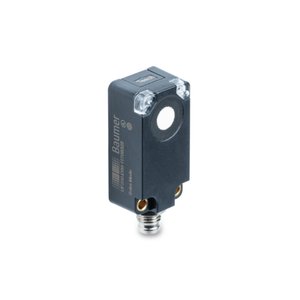

Baumer UF200.EA0-GP2J.72N: Level Sensors
Technical Specifications of Baumer UF200.EA0-GP2J.72N 11708333:
| Voltage supply range +Vs | 12 β¦ 30 VDC |
| Output circuit | Push-pull |
| Output current | <100 mA |
Baumer Level Sensors UF200.EA0-GP2J.72N Technical Specifications
| Specification | Value |
|---|
| Power on indication | LED green |
| Voltage supply range +Vs | 12 β¦ 30 VDC |
| Output circuit | Push-pull |
| Output current | <100 mA |
| Voltage drop Vd | <3 VDC |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes, Vs to GND |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Depth | 15 mm |
| Connection types | Connector M8 4 pin |
| Operating temperature | -25 β¦ +65 Β°C |
| Storage temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
| Scanning range Sd | 0 β¦ 1000 mm |
| Version | IO-Link |
| Hysteresis typ. | 5 % Sde |
| Repeat accuracy | 1 mm |
| Temperature drift | < 2 % Sde |
| Sonic frequency | 310 kHz |
| Adjustment | qTeach, line-Teach, IO-Link |
| Current consumption typ. | 16 mA |
| Baud rate | 230.4 kBaud (COM 3) |
| Residual ripple | < 10 % Vs |
| Interface | IO-Link V1.1 |
| Cycle time | β₯ 0.8 ms |
| Process data length | 48 Bit |
| Process data structure | Bit 0 = SSC1, Bit 1 = SSC2, Bit 3 = alarm, Bit 16-31 = 16 Bit measurement |
| IO-Link port type | Class A |
| Additional data | Excess gain, Operating cycles, Operating hours, Boot cycles, Operating voltage, Device temperature, Histograms |
| Adjustable parameters | Time filters, LED status indicators, Output logic, Output function, Counter, Deactivate the sensor element, Find Me function |
| Width / diameter | 20.5 mm |
| Height / length | 41 mm |
| Alignment aid | Light indicator flashing |
| Emitter / receiver | Receiver |
| Object size (at Sd = 50 mm) | > 4 cmΒ² |
| Response time ton | < 2 ms |
| Release time toff | < 2 ms |
