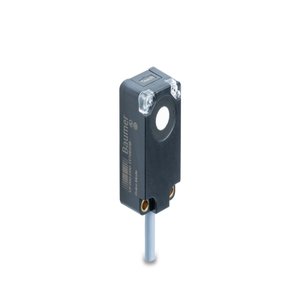

Baumer UF200.EA0-GP2J.72CU Ultrasonic Sensor
The Baumer UF200.EA0-GP2J.72CU Ultrasonic Sensor offers a Receiver, 0 … 1000 mm sensing range, 12 … 30 VDC supply voltage, LED green indication, and Cable 4 pin, 2 m connection. Manufactured by Baumer under the Baumer Ultrasonic Sensor category, this model belongs to the UF200 Series.
| Brand | Baumer |
| Product Type | Ultrasonic Sensor |
| Model Number | UF200.EA0-GP2J.72CU |
Baumer UF200.EA0-GP2J.72CU Ultrasonic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Emitter / receiver | Receiver |
| Scanning range Sd | 0 … 1000 mm |
| Version | IO-Link |
| Object size (at Sd = 50 mm) | > 4 cm² |
| Hysteresis typ. | 5 % Sde |
| Repeat accuracy | 1 mm |
| Temperature drift | < 2 % Sde |
| Response time ton | < 2 ms |
| Release time toff | < 2 ms |
| Adjustment | qTeach, line-Teach, IO-Link |
| Sonic frequency | 310 kHz |
| Alignment aid | Light indicator flashing |
| Power on indication | LED green |
| Voltage supply range +Vs | 12 … 30 VDC |
| Output circuit | Push-pull |
| Output current | <100 mA |
| Voltage drop Vd | <3 VDC |
| Residual ripple | < 10 % Vs |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Width / diameter | 20.5 mm |
| Height / length | 41 mm |
| Depth | 15 mm |
| Connection types | Cable 4 pin, 2 m |
| Operating temperature | -25 … +65 °C |
| Storage temperature | -25 … +75 °C |
| Protection class | IP 67 |
| Current consumption typ. | 16 mA |
