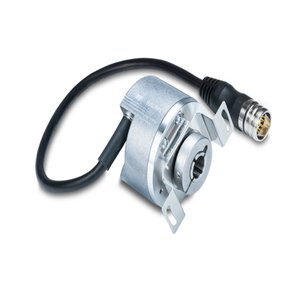

Baumer optoTurn EN580E.ML-TT12.GE11G.13120.H Rotary Encoder
Technical Specifications of Baumer Aluminium Housing Material optoTurn EN580E.ML-TT12.GE11G.13120.H 11246049:
| Voltage supply | 8...30 VDC |
| Interface | SSI |
| Sensing method | Optical |
| Connection | Flylead connector M23, 12-pin, tangential, length 300 mm |
Baumer optoTurn EN580E.ML-TT12.GE11G.13120.H Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 8...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | β€80 mA (24 VDC) |
| Interface | SSI |
| Function | Multiturn |
| Absolute accuracy | Β±0.03 Β° |
| Sensing method | Optical |
| Size (flange) | ΓΈ58 mm |
| Shaft type | ΓΈ12 mm (through hollow shaft) |
| Protection EN 60529 | IP 54 (flange side), IP 65 (housing side) |
| Operating speed | β€6000 rpm (+25 Β°C) |
| Starting torque | β€0.04 Nm |
| Material | Housing: aluminium, Shaft: stainless steel |
| Operating temperature | -25...+85 Β°C (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | IEC 60068-2-6, Vibration Β±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz, EN 60068-2-27, Shock 100 g, 11 ms |
| Weight approx. | 400 g |
| Connection | Flylead connector M23, 12-pin, tangential, length 300 mm |
| Code sequence | CW: ascending values with clockwise sense of rotation (looking at flange) |
| Output stages | SSI data: Linedriver RS422 |
| Output signals | SSI data |
IndMALL Offers Baumer Aluminium Housing Material optoTurn EN580E.ML-TT12.GE11G.13120.H part no: 11246049 at economical Choices. Product Tech Specs of optoTurn EN580E.ML-TT12.GE11G.13120.H, 11246049 include voltage supply of 8...30 VDC. These encoders feature the SSI interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ΓΈ58 mm, making them suitable for various industrial applications. The operating speed reaches up to β€6000 rpm (+25 Β°C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flylead connector M23, 12-pin, tangential, length 300 mm, ensuring secure and efficient data transmission. Now's the Time to Secure a Quote for your requirement of Baumer Aluminium Housing Material. Trust in our superior pricing and more dedicated support over other Distributors.
