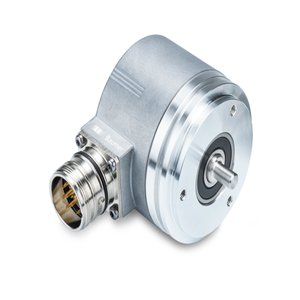

Baumer optoTurn EN580E.ML-SU06.GB11G.13120.H Rotary Encoder
Technical Specifications of Baumer CCW Connection Encoder optoTurn EN580E.ML-SU06.GB11G.13120.H 11246023:
| Voltage supply | 8...30 VDC |
| Interface | SSI |
| Sensing method | Optical |
| Connection | Flange connector M23, 12-pin, CCW |
Baumer optoTurn EN580E.ML-SU06.GB11G.13120.H Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 8...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | ≤80 mA (24 VDC) |
| Interface | SSI |
| Function | Multiturn |
| Absolute accuracy | ±0.03 ° |
| Sensing method | Optical |
| Size (flange) | ø58 mm |
| Shaft type | ø6 x 10 mm, solid shaft with flat |
| Protection EN 60529 | IP 54 (flange side), IP 65 (housing side) |
| Operating speed | ≤6000 rpm (+25 °C) |
| Starting torque | ≤0.02 Nm |
| Material | Housing: aluminium, Shaft: stainless steel |
| Operating temperature | -25...+85 °C (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | EN 60068-2-6, Vibration ±4 mm - 10-61 Hz, 30 g - 61-2000 Hz, EN 60068-2-27, Shock 100 g, 6 ms |
| Weight approx. | 400 g |
| Connection | Flange connector M23, 12-pin, CCW |
| Flange | Synchro flange |
| Admitted shaft load | ≤40 N axial, ≤80 N radial |
| Code sequence | CW: ascending values with clockwise sense of rotation (looking at flange) |
| Output stages | SSI data: Linedriver RS422 |
| Output signals | SSI data |
Get A Quote for Baumer CCW Connection Encoder optoTurn EN580E.ML-SU06.GB11G.13120.H part no: 11246023 at unbeatable prices. Detailed Specifications of optoTurn EN580E.ML-SU06.GB11G.13120.H, 11246023 feature voltage supply of 8...30 VDC. These encoders feature the SSI interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ø58 mm, making them suitable for various industrial applications. The operating speed reaches up to ≤6000 rpm (+25 °C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flange connector M23, 12-pin, CCW, ensuring secure and efficient data transmission. Match Your Needs with a Quote for your requirement of Baumer CCW Connection Encoder. Our pricing and support are unrivaled, especially when compared to other Distributors.
