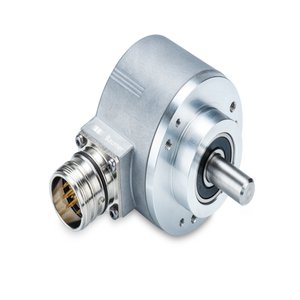

Baumer optoTurn EN580E.ML-SC10.GB11G.13120.H Rotary Encoder
Technical Specifications of Baumer SSI Absolute Encoder optoTurn EN580E.ML-SC10.GB11G.13120.H 11246026:
| Voltage supply | 8...30 VDC |
| Interface | SSI |
| Sensing method | Optical |
| Connection | Flange connector M23, 12-pin, CCW |
Baumer optoTurn EN580E.ML-SC10.GB11G.13120.H Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 8...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | β€80 mA (24 VDC) |
| Interface | SSI |
| Function | Multiturn |
| Absolute accuracy | Β±0.03 Β° |
| Sensing method | Optical |
| Size (flange) | ΓΈ58 mm |
| Shaft type | ΓΈ10 x 20 mm, solid shaft with flat |
| Protection EN 60529 | IP 54 (flange side), IP 65 (housing side) |
| Operating speed | β€6000 rpm (+25 Β°C) |
| Starting torque | β€0.02 Nm |
| Material | Housing: aluminium, Shaft: stainless steel |
| Operating temperature | -25...+85 Β°C (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | EN 60068-2-6, Vibration Β±4 mm - 10-61 Hz, 30 g - 61-2000 Hz, EN 60068-2-27, Shock 100 g, 6 ms |
| Weight approx. | 400 g |
| Connection | Flange connector M23, 12-pin, CCW |
| Flange | Clamping flange |
| Admitted shaft load | β€40 N axial, β€80 N radial |
| Code sequence | CW: ascending values with clockwise sense of rotation (looking at flange) |
| Output stages | SSI data: Linedriver RS422 |
| Output signals | SSI data |
Mail Us for Baumer SSI Absolute Encoder optoTurn EN580E.ML-SC10.GB11G.13120.H part no: 11246026 at the lowest pricing. Technical Specs Summary of optoTurn EN580E.ML-SC10.GB11G.13120.H, 11246026 are voltage supply of 8...30 VDC. These encoders feature the SSI interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ΓΈ58 mm, making them suitable for various industrial applications. The operating speed reaches up to β€6000 rpm (+25 Β°C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flange connector M23, 12-pin, CCW, ensuring secure and efficient data transmission. Navigate Your Needs with a Quote for your requirement of Baumer SSI Absolute Encoder. We excel in offering more cost-effective and supportive solutions than other Competitors.
