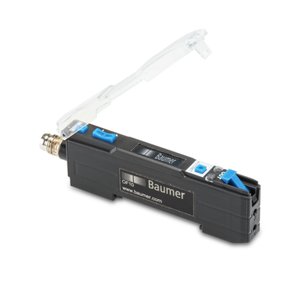

Baumer OF10.FR-NW1B.B2N Fiber Optic Sensor
Baumer OF10.FR-NW1B.B2N Fiber Optic Sensor uses a pulsed red LED with a wavelength of 660 nm and includes an OLED display for operating and setup information. The specified NPN output supports a maximum output current of 150 mA, while selectable light or dark operation allows the switching state to be matched to the control requirement. Maximum current consumption is 30 mA. Its rectangular housing is made from polycarbonate and measures 10 mm wide, 27.8 mm high, and 93.1 mm deep. An M8 4-pin connector provides the electrical interface, while enclosure protection is specified as IP50. Sensing distance, supply voltage, and response time are not provided in the supplied row and have therefore not been assumed. The model is included within the Baumer Fiber Optic Sensor range from Baumer Sensors.
| Brand | Baumer |
| Product Type | Fiber Optic Sensor |
| Model Number | OF10.FR-NW1B.B2N |
Baumer OF10.FR-NW1B.B2N Fiber Optic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Light source | Pulsed red LED |
| Light indicator | OLED display |
| Wave length | 660 nm |
| Current consumption max. (no load) | 30 mA |
| Output function | Light / dark operate switchable |
| Output circuit | NPN |
| Output current | 150 mA |
| Width / diameter (head) | 10 mm |
| Height / length (head) | 27.8 mm |
| Depth | 93.1 mm |
| Design | Rectangular |
| Housing material | Polycarbonate |
| Connection types | Connector M8 4 pin |
| Protection class | IP 50 |
The Baumer OF10.FR-NW1B.B2N Fiber Optic Sensor uses a pulsed red LED operating at 660 nm and provides an OLED display for setup and operating information. Its NPN output supports a maximum current of 150 mA, while light or dark operation can be selected according to the required output condition. Maximum current consumption is specified at 30 mA. The sensor uses a rectangular polycarbonate housing measuring 10 mm wide, 27.8 mm high, and 93.1 mm deep. Electrical connection is provided through an M8 4-pin connector, while IP50 protection is specified for the enclosure. The NPN output is the main electrical distinction from the PNP version listed in the same OF10 group.
For a Baumer NPN fiber optic sensor requiring OLED indication and M8 connection, the corresponding model is the OF10.FR-NW1B.B2N. Its configuration also matches searches for a Baumer 660 nm NPN sensor and Baumer compact fiber optic sensor. The supplied specification does not identify sensing distance, supply voltage, response time, or operating temperature, so these values have not been added. Its 10 mm body width supports compact mounting, while selectable light/dark switching allows the output response to be configured according to the control requirement without changing the sensor's mechanical arrangement.
