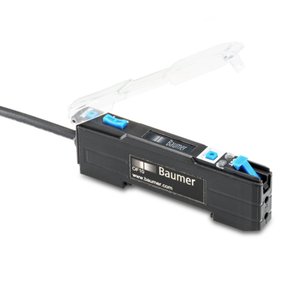

Baumer OF10.FR-GW2J.B2NV/A014 Fiber Optic Sensor
Baumer OF10.FR-GW2J.B2NV/A014 Fiber Optic Sensor uses a pulsed red LED operating at 660 nm and provides an OLED display for setup and status information. Its output configuration is specified as IO-Link / push-pull with a maximum output current of 150 mA, while light and dark operation can be selected according to the switching requirement. Maximum current consumption is listed at 30 mA. The rectangular polycarbonate housing measures 10 mm wide, 27.8 mm high, and 82.3 mm deep. Electrical connection is provided through an M8 4-pin flylead connector with a stated 200 mm lead length. IP50 enclosure protection is specified. The source does not provide sensing distance, supply voltage, or response time. The OF10.FR-GW2J.B2NV/A014 is available within the Baumer Fiber Optic Sensor range from Baumer Sensors.
| Brand | Baumer |
| Product Type | Fiber Optic Sensor |
| Model Number | OF10.FR-GW2J.B2NV/A014 |
Baumer OF10.FR-GW2J.B2NV/A014 Fiber Optic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Light source | Pulsed red LED |
| Light indicator | OLED display |
| Wave length | 660 nm |
| Current consumption max. (no load) | 30 mA |
| Output function | Light / dark operate switchable |
| Output circuit | IO-Link / push-pull |
| Output current | 150 mA |
| Width / diameter (head) | 10 mm |
| Height / length (head) | 27.8 mm |
| Depth | 82.3 mm |
| Design | Rectangular |
| Housing material | Polycarbonate |
| Connection types | Flylead connector M8 4 pin, L=200 mm |
| Protection class | IP 50 |
The Baumer OF10.FR-GW2J.B2NV/A014 Fiber Optic Sensor uses a pulsed red LED operating at 660 nm and provides an OLED display for visual setup and operating information. Its output configuration is specified as IO-Link / push-pull with a maximum output current of 150 mA. Light and dark operation can be selected according to the required switching state, while maximum current consumption is listed at 30 mA. The rectangular housing is made from polycarbonate and measures 10 mm wide, 27.8 mm high, and 82.3 mm deep. Electrical connection is provided through an M8 4-pin flylead connector with a stated lead length of 200 mm, while IP50 protection is specified for the enclosure.

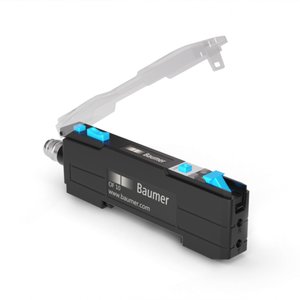

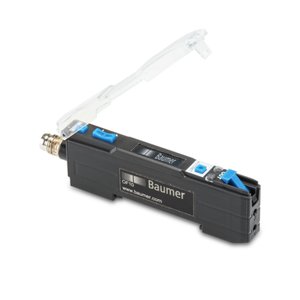

For a Baumer IO-Link fiber optic sensor requiring push-pull output and OLED indication, the corresponding model is the OF10.FR-GW2J.B2NV/A014. Its specification also suits searches for a Baumer 660 nm IO-Link sensor and Baumer M8 fiber optic sensor. The supplied row does not state sensing distance, supply voltage, response time, or operating temperature, so those details have not been inferred. Compared with the 93.1 mm depth listed for the PNP and NPN OF10 versions, this model has an 82.3 mm stated housing depth and uses a short flylead connection.
