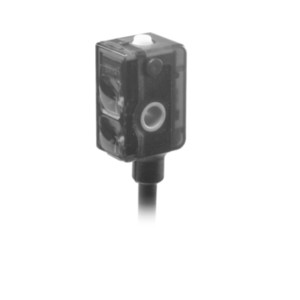

Baumer FEDK 07P6901/KS35A Photoelectric Sensor
The Baumer FEDK 07P6901/KS35A is a through-beam photoelectric sensor receiver with 2.5 m sensing range and PNP digital output. This Baumer Photoelectric Sensor from the FEDK series operates on 10–30 VDC, provides <0.5 ms response time, uses a flylead M8 connection, and features IP65 protection for compact automation installations.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Model Number | FEDK 07P6901/KS35A |
Baumer FEDK 07P6901/KS35A Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Type | Through beam sensor |
| Measuring distance | 2 m to 2.5 m |
| Adjustment | Teach-in |
| Output indicator | LED yellow |
| Light source | - |
| Wave length | - |
| Response time / release time | < 0.5 ms |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 20 mA |
| Voltage drop Vd | <1.8 VDC |
| Output circuit | PNP |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Width / diameter | 8 mm |
| Height / length | 16.2 mm |
| Depth | 10.8 mm |
| Design | Rectangular |
| Housing material | Plastic (PMMA, MABS, PA) |
| Connection types | Flylead connector M8 4 pin, L=200 mm |
| Protection class | IP 65 |
| Operating temperature | -20 … +50 °C |
FEDK 07P6901/KS35A Baumer Through Beam Photoelectric Sensor is a subminiature photoelectric sensor receiver designed for precise object detection in industrial automation. The FEDK 07P6901/KS35A Baumer Through Beam Photoelectric Sensor supports a 2–2.5 m sensing range, PNP digital output, and operates on 10–30 VDC. It belongs to the FEDK series and is used where compact dimensions and fast switching performance are required.
In industrial automation systems, the FEDK 07P6901/KS35A Baumer Through Beam Photoelectric Sensor is used in packaging machines, bottling lines, electronics assembly, and conveyor systems. The through-beam configuration supports reliable object detection across stable distances, while the <0.5 ms response time ensures accurate signal switching at high process speeds. Its small rectangular housing allows installation in space-constrained equipment layouts.
The Baumer FEDK 07P6901/KS35A photoelectric sensor combines compact mechanical design with IP65 environmental protection and standard flylead connectivity. As part of the FEDK series, it aligns with Baumer’s industrial sensing portfolio for dependable detection tasks. The FEDK 07P6901/KS35A Baumer Through Beam Photoelectric Sensor is suitable for continuous industrial operation where stable output behavior and mechanical consistency are required.
