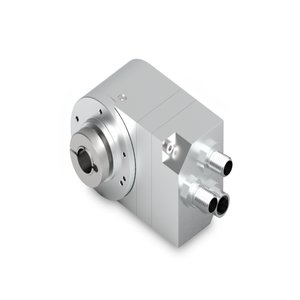

Baumer EN580C.ML-TN14.GH1PB.21160.H Rotary Encoder
Technical Specifications of Baumer Encoder With Rotary Precision EN580C.ML-TN14.GH1PB.21160.H 11266037:
| Voltage supply | 8...30 VDC |
| Interface | Profibus-DPV0 |
| Sensing method | Optical |
| Connection | Connector 3xM12 |
Baumer EN580C.ML-TN14.GH1PB.21160.H Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 8...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | β€100 mA (24 VDC) |
| Interface | Profibus-DPV0 |
| Function | Multiturn |
| Absolute accuracy | Β±0.01 Β° |
| Sensing method | Optical |
| Status indicator | DUO-LED integrated in bus cover |
| Size (flange) | ΓΈ58 mm |
| Shaft type | ΓΈ14 mm (through hollow shaft) |
| Protection EN 60529 | IP 54 (without shaft seal) |
| Operating speed | β€6000 rpm (+25 Β°C) |
| Starting acceleration | β€1000 U/sΒ² |
| Starting torque | β€0.04 Nm (+25 Β°C, IP 54) |
| Material | Housing: aluminium, Flange: aluminium, Bus cover: aluminium, Shaft: stainless steel |
| Operating temperature | -25...+85 Β°C (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | EN 60068-2-6, Vibration Β±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz, EN 60068-2-27, Shock 200 g, 3 ms |
| Weight approx. | 500 g |
| Connection | Connector 3xM12 |
Send Your Inquiry for Baumer Encoder With Rotary Precision EN580C.ML-TN14.GH1PB.21160.H part no: 11266037 with cost-effective solutions. Essential Technical Specs of EN580C.ML-TN14.GH1PB.21160.H, 11266037 are voltage supply of 8...30 VDC. These encoders feature the Profibus-DPV0 interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ΓΈ58 mm, making them suitable for various industrial applications. The operating speed reaches up to β€6000 rpm (+25 Β°C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Flange: aluminium, Bus cover: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Connector 3xM12, ensuring secure and efficient data transmission. Capture the Best Deal with a Quote for your requirement of Baumer Encoder With Rotary Precision. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
