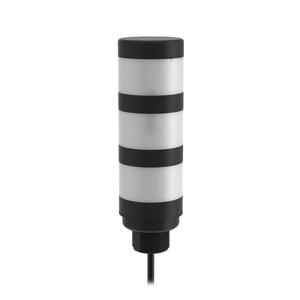

Bannerengineering TL50B-GYR Tower Light
The Banner TL50B-GYR Tower Light offers Base Mount - Tower housing style, 3 No. of Colors, M30 x 1.5 Mounting Method, and Cable connection. Manufactured by Banner under the Banner Tower Lights category, this model belongs to the TL Series.
| Housing Style | Base Mount - Tower |
| Supply Voltage | 18-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
Banner TL50B-GYR Tower Light – Technical Specifications
| Specification | Value |
|---|---|
| Type | TL50 Core Series 50 mm LED Tower Light |
| Housing Style | Base Mount - Tower |
| IP Rating | IP65 |
| NEMA / UL Type Rating | NEMA 4X |
| Cable Length (m) | 1.2 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Cable |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 3 |
| Product Size (mm) | 50 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Color Option 2 | Yellow |
| Animation Option 2 | Solid On |
| Color Option 3 | Red |
| Animation Option 3 | Solid On |
| Max Current Color (mA) | 26 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 18-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Max Input Response Time (ms) | 1 |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 166.1 |
| Environmental Rating | IP65 |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Simultaneous Colors On |
| Max Current - Audible Alarm (mA) | 20 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Lumens Color 1 | 17 |
| Color 1 - Wavelength/Color Temp/Coordinates | 525 nm |
| Lumens Color 2 | 16 |
| Color 2 - Wavelength/Color Temp/Coordinates | 590 nm |
| Lumens Color 3 | 8 |
| Color 3 - Wavelength/Color Temp/Coordinates | 625 nm |
| Number of Tower Light Segments | 3 |
