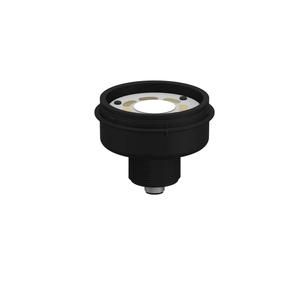

Home Brands Banner Tower Lights B-TL70B-Q5 Bannerengineering B-TL70B-Q5 Tower Light The Banner B-TL70B-Q5 Tower Light offers Segment - Base housing style, M30 x 1.5 Mounting Method, and Integral QD connection. Manufactured by Banner under the Banner Tower Lights category, this model belongs to the TL Series.
Housing Style Segment - Base Supply Voltage 12-30 V dc Input Type Bimodal (PNP/NPN) Max Input Response Time (ms) 180
Banner B-TL70B-Q5 Tower Light – Technical Specifications Specification Value Type TL70 Basic Series 70mm Tower Lights Housing Style Segment - Base IP Rating IP65 Power DC Primary Housing Material Polycarbonate Connection Integral QD Feature: Audible No Display No Indication Yes Mounting Thread M30 x 1.5 Color Input Control Individual (One wire/color, same number of colors as input wires) Product Size (mm) 70 Quick Disconnect Type M12 Number of Input Pins/Conductors 5 Supply Voltage 12-30 V dc Input Type Bimodal (PNP/NPN) Max Input Response Time (ms) 180 Physical Dimensions (LxWxH or DxH mm) 70.0 x 47.5 Environmental Rating IP65 High Temperature (up to 100° C) 50 Min Op. Temperature (°C) -40 Primary Housing Color Black Feature: Quick Disconnect Yes Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C Storage Temp (°C) -40 to 70 Non-Illuminated Yes
