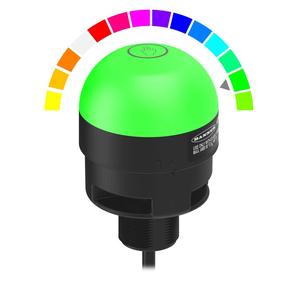

Banner K70PTALGRY3AQP Touch Button
The Banner K70PTALGRY3AQP Touch Button offers a Base Mount - Dome Window housing style, Pigtail QD Connection, Normally Open operation, and IP65 rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.
| Connection | Pigtail QD |
| Color Technology | RGB Configurable |
| Supply Voltage | 12-30 V dc |
Banner K70PTALGRY3AQP Touch Button - Technical Specifications
| Specification | Value |
|---|---|
| Type | K70 Pro Series 70 mm Programmable Multicolor Touch Button |
| Housing Style | Base Mount - Dome Window |
| IP Rating | IP65 |
| Cable Length (m) | 0.15 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Pigtail QD |
| Operation | Normally Open |
| Feature: Audible | Yes |
| Display | No |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number of Colors | 3 |
| Product Size (mm) | 50 |
| Color Technology | RGB Configurable |
| Color Option 1 | Green |
| Quick Disconnect Type | M12 |
| Color Option 2 | Yellow |
| Color Option 3 | Red |
| Max Current Color (mA) | 200 |
| Wire Selectable Function | Programmable |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 12-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Max Input Response Time (ms) | 40 |
| Physical Dimensions (LxWxH or DxH mm) | 70.0 x 102.7 |
| Environmental Rating | IP65 |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Simultaneous Colors On |
| Audible Alarm Type | Programmable |
| Max Audible Intensity (db at 1m) | 103 |
| Audible Operating Frequency (kHz) | 2.5 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50Β°C |
| Storage Temp (Β°C) | -40 to 70 |
| Activation Function | Capacitive Touch |
| Pick-to-Light Function | F2 |
| Output Type | Bipolar (NPN & PNP) |
| Max Output Response Time (ms) | 300 |
| Button Operation | Latching |
| Min Audible Intensity (db at 1m) | 95 |
| Lumens Color 1 | 46.6 |
| Color 1 - Wavelength/Color Temp/Coordinates | 532 nm |
| Lumens Color 2 | 36.4 |
| Color 2 - Wavelength/Color Temp/Coordinates | 578 nm |
| Lumens Color 3 | 26 |
| Color 3 - Wavelength/Color Temp/Coordinates | 621 nm |
| Vibration Feedback | No |
