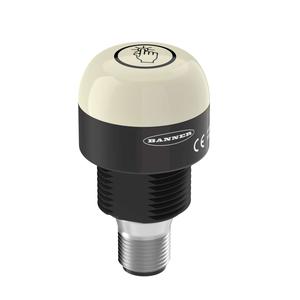

Home Brands Banner Touch Buttons K30APT2WBGF2Q Banner K30APT2WBGF2Q Touch Button The Banner K30APT2WBGF2Q Touch Button offers a Base Mount - Dome Window housing style, Integral QD Connection, Normally Open operation, and IP67, IP69K rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.
Connection Integral QD Color Technology Standard LED Supply Voltage 12-30 V dc
Banner K30APT2WBGF2Q Touch Button - Technical Specifications Specification Value Type K30 Core Series 30 mm Multipurpose Illuminated Touch Buttons Housing Style Base Mount - Dome Window IP Rating IP67, IP69K NEMA / UL Type Rating NEMA and UL 4X, 13 Power DC Primary Housing Material Polycarbonate Connection Integral QD Operation Normally Open Feature: Audible No Display No Mounting Thread M22 x 1.5 Color Input Control Individual (One wire/color, same number of colors as input wires) Number of Colors 3 Product Size (mm) 30 Color Technology Standard LED Color Option 1 Cool White Animation Option 1 Solid On Quick Disconnect Type M12 Color Option 2 Blue Color Option 3 Green Max Current Color (mA) 55 Number of Input Pins/Conductors 8 Supply Voltage 12-30 V dc Input Type PNP Max Input Response Time (ms) 300 Physical Dimensions (LxWxH or DxH mm) 30.0 x 54.5 Environmental Rating IP67; IP69K High Temperature (up to 100Β° C) 50 Min Op. Temperature (Β°C) -40 Primary Housing Color Black Primary Window Material Polycarbonate Diffused Multi-Color Device Single Color On Max Op. Relative Humidity Non-Condensing (%) 90% @ 50Β°C Storage Temp (Β°C) -40 to 70 Activation Function Capacitive Touch Pick-to-Light Function F2 Output Type PNP Max Output Response Time (ms) 150 Button Operation Momentary Lumens Color 1 5 Color 1 - Wavelength/Color Temp/Coordinates 7500K Lumens Color 2 1 Color 2 - Wavelength/Color Temp/Coordinates 465 nm Lumens Color 3 4.4 Color 3 - Wavelength/Color Temp/Coordinates 525 nm
