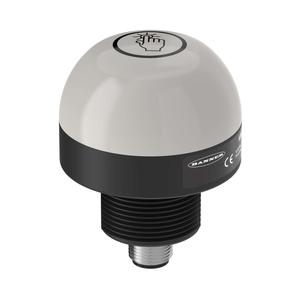

Home Brands Banner Touch Button K50APTGRBF2Q Banner K50APTGRBF2Q Touch Button The Banner K50APTGRBF2Q Touch Button offers a Base Mount - Dome Window housing style, Integral QD Connection, Normally Open operation, and IP67, IP69K rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.
Brand Banner Product Type Tower Button Model Number K50APTGRBF2Q
Banner K50APTGRBF2Q Touch Button - Technical Specifications Specification Value Type K50 Core Series 50 mm Multipurpose Illuminated Touch Buttons Housing Style Base Mount - Dome Window IP Rating IP67, IP69K Power DC Primary Housing Material Polycarbonate Connection Integral QD Operation Normally Open Mounting Thread M30 x 1.5 Color Input Control Individual (One wire/color, same number of colors as input wires) Number of Colors 3 Product Size (mm) 50 Color Technology Standard LED Color Option 1 Green Animation Option 1 Solid On Quick Disconnect Type M12 Max Current Color (mA) 75 Number of Input Pins/Conductors 8 Supply Voltage 12-30 V dc Input Type PNP Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0 Environmental Rating IP67; IP69K High Temperature (up to 100Β° C) 50 Min Op. Temperature (Β°C) -40 Primary Housing Color Black Primary Window Material Polycarbonate Diffused Multi-Color Device Single Color On Output Type PNP Max Output Response Time (ms) 50
