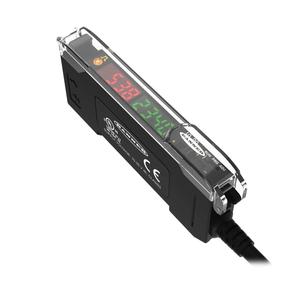

Banner DF-G1-NR-9M: Fiber Optic Amplifiers
The Banner DF-G1-NR-9M Fiber Optic Amplifiers offers a Plastic and Glass fiber type, NPN output, and Cable connection. Manufactured by Banner under the Banner Fiber Optic Amplifiers category, this model belongs to the DF Series.
| Output Type (Specific) | Single Discrete |
| Power Supply/Supply Voltage | 10-30 V dc |
Banner Fiber Optic Amplifiers DF-G1-NR-9M Technical Specifications
| Specification | Value |
|---|---|
| Type | DF-G1 Series General Purpose Fiber Optic Amplifier |
| IP Rating | IP50 |
| Accepts Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
| NEMA / UL Type Rating | NEMA 4X |
| Power | DC |
| Housing Style | DIN Rail |
| Primary Housing Material | Thermoplastic |
| Input Output | Discrete |
| Color LED - Amplifiers | Red |
| Fiber Type | Plastic and Glass |
| Connection | Cable |
| Output | NPN |
| Output Type (Specific) | Single Discrete |
| Number of Pins | 4 |
| Max Op. Temperature (Β°C) | 55 |
| Min Op. Temperature (Β°C) | -10 |
| Max Op. Relative Humidity (%) | 90% @ 60Β°C |
| Special Feature: Remote Teach | Yes |
| Intrinsically Safe | No |
| Adjustments | Teach Button |
| Power Supply/Supply Voltage | 10-30 V dc |
| Delay at Power-up (ms) | 500 |
| Indicator Display Type | Dual Digital Displays |
| Minimum response time (ms) | 50 |
| Special Feature: Bussable Power | No |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Audible | No |
| Cable Length (m) | 9 |
| Housing Material | Thermoplastic |
