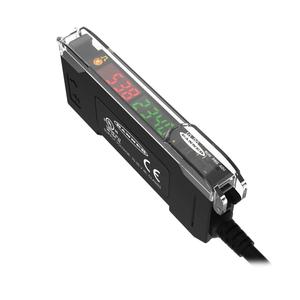

Bannerengineering DF-G1-PR-2M: Fiber Optic Amplifiers
Technical Specifications of Banner Fiber Optic Amplifiers DF-G1-PR-2M:
| Output Type (Specific) | Single Discrete |
| Power Supply/Supply Voltage | 10-30 V dc |
| NEMA / UL Type Rating | NEMA 4X |
Bannerengineering Fiber Optic Amplifiers DF-G1-PR-2M Technical Specifications
| Specification | Value |
|---|
| Type | DF-G1 Series General Purpose Fiber Optic Amplifier |
| IP Rating | IP50 |
| Accepts Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
| NEMA / UL Type Rating | NEMA 4X |
| Power | DC |
| Housing Style | DIN Rail |
| Primary Housing Material | Thermoplastic |
| Input Output | Discrete |
| Color LED - Amplifiers | Red |
| Fiber Type | Plastic and Glass |
| Connection | Cable |
| Output | PNP |
| Output Type (Specific) | Single Discrete |
| Number of Pins | 4 |
| Max Op. Temperature (Β°C) | 55 |
| Min Op. Temperature (Β°C) | -10 |
| Max Op. Relative Humidity (%) | 90% @ 60Β°C |
| Special Feature: Remote Teach | Yes |
| Intrinsically Safe | No |
| Adjustments | Teach Button |
| Power Supply/Supply Voltage | 10-30 V dc |
| Delay at Power-up (ms) | 500 |
| Indicator Display Type | Dual Digital Displays |
| Minimum response time (ms) | 50 |
| Special Feature: Bussable Power | No |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Audible | No |
| Cable Length (m) | 2 |
| Housing Material | Thermoplastic |
