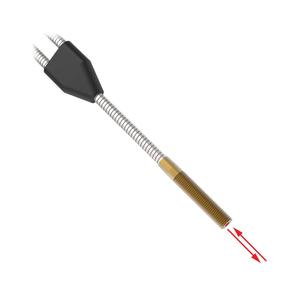

Home Brands Banner Fiber Optics BT13S Banner BT13S Fiber Optic Sensor The Banner BT13S Fiber Optic Sensor offers a Diffuse sensing mode, 25 bend radius, Glass fiber optic type, and Glass Fiber Sensors termination type. Manufactured by Banner under the Banner Fiber Optic Sensor category, this model belongs to the PIF46U Series.
Brand Banner Product Type Fiber Optic Sensor Model Number BT13S
Banner BT13S Fiber Optic Sensor β Technical Specifications Specification Value Housing Style Round Quantity Included 1 Fiber Optic Type Glass Sensing Mode (General) Diffuse Sensing Mode (Detailed) Reflective Beam Exit In-line Sensing End Material (Specific) Brass Fiber Sheathing Material (Jacket) Stainless Steel Monocoil Fiber Sensing End Tip Thread Fiber Length (m) 0.914 Fiber Sensing End Size #5/16-24 thread Sensing End Segment 1 Thread Retractile No Flex Relief No Core Diameter (mm) 1.6 Minimum Bend Radius (mm) 25 Termination Terminated Max Temp ( Β°C) 249 Integrated Lens No Application: Liquid Level No Termination Type Glass Fiber Sensors Max Distance: DF-G3 (mm) No Data Fiber Sensing End Size - Mounting Area #5/16-24 thread Measured Max Distance (mm) No Data Max Distance: DF-G2 (mm) No Data Tariff Fiber Meters (fbm) 739.43 Max Distance: DF-G1 (mm) No Data
