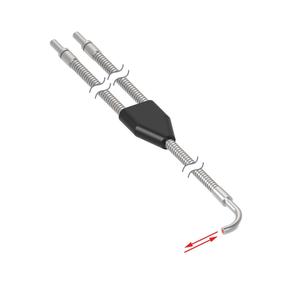

Home Brands Banner Fiber Optics BA23S Banner BA23S Fiber Optic Sensor The Banner BA23S Fiber Optic Sensor offers a Diffuse sensing mode, 25 bend radius, Glass fiber optic type, and Glass Fiber Sensors termination type. Manufactured by Banner under the Banner Fiber Optic Sensor category, this model belongs to the PIF46U Series.
Brand Banner Product Type Fiber Optic Sensor Model Number BA23S
Banner BA23S Fiber Optic Sensor β Technical Specifications Specification Value Housing Style Round Quantity Included 1 Fiber Optic Type Glass Sensing Mode (General) Diffuse Sensing Mode (Detailed) Reflective Beam Exit Right Angle Sensing End Material (Specific) Stainless Steel Fiber Sheathing Material (Jacket) Stainless Steel Monocoil Fiber Sensing End Tip Angle Fiber Length (m) 0.914 Fiber Sensing End Size 4.8 mm Sensing End Segment 1 Angle Retractile No Flex Relief No Core Diameter (mm) 3.2 Minimum Bend Radius (mm) 25 Termination Terminated Max Temp ( Β°C) 249 Integrated Lens No Application: Liquid Level No Termination Type Glass Fiber Sensors Max Distance: DF-G3 (mm) No Data Fiber Sensing End Size - Mounting Area 4.8 mm Measured Max Distance (mm) No Data Max Distance: DF-G2 (mm) No Data Tariff Fiber Meters (fbm) 3110.34 Max Distance: DF-G1 (mm) No Data
