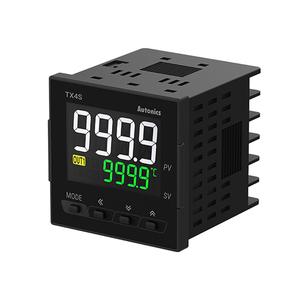

Autonics TX4S-14C - LCD Display PID Temperature Controllers
Technical Specifications of Autonics LCD Display PID Temperature Controllers TX4S-14C:
| Spec | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Control output | Current (DC0/4-20mA) or SSR drive (13VDC @(=))[ON/OFF] |
| Control method | ON/OFF, P, PI, PD, PID |
Autonics LCD Display PID Temperature Controllers TX4S-14C Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 50ms |
| Control output | Current (DC0/4-20mA) or SSR drive (13VDC @(=))[ON/OFF] |
| Display method | 4-digit 11-segment LCD |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃/℉ |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | 0.5 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation (mark: @(INS), dielectric strength between primary circuit and secondary circuit: 3kV) |
| Protection structure | IP50(front panel) |
| Input specification | Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC)RTD: DPt100Ω, Cu50Ω |
| Option output | Alarm 1 |
| Display accuracy_RTD | •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit•Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
| Display accuracy_Thermocouple | •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit•Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
| Hysteresis(adjustable sensitivity) | 1 to 100℃/℉(0.1 to 50.0℃/℉) variable |
| Weight | Approx. 146.1g(approx. 86.7g) |
