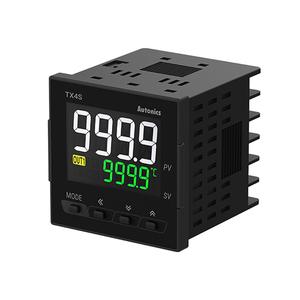

Autonics TX4S-14R Temperature Controller
The Autonics TX4S-14R Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, 4-digit 11-segment LCD, 50ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TX Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TX4S-14R |
Autonics TX4S-14R Temperature Controller โ Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 50ms |
| Control output | Relay (250VAC~ 3A, 30VDC @(=) 3A) |
| Display method | 4-digit 11-segment LCD |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9โ/โ |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | 0.5 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50โ, storage: -20 to 60โ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation (mark: @(INS), dielectric strength between primary circuit and secondary circuit: 3kV) |
| Protection structure | IP50(front panel) |
| Input specification | Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC)RTD: DPt100ฮฉ, Cu50ฮฉ |
| Option output | Alarm 1 |
| Display accuracy_RTD | โขAt room temperature(23โยฑ5โ):(PV ยฑ0.3% or ยฑ1โ, select the higher one) ยฑ1-digitโขOut of room temperature:(PV ยฑ0.5% or ยฑ2โ, select the higher one) ยฑ1-digit |
| Display accuracy_Thermocouple | โขAt room temperature(23โยฑ5โ):(PV ยฑ0.3% or ยฑ1โ, select the higher one) ยฑ1-digitโขOut of room temperature:(PV ยฑ0.5% or ยฑ2โ, select the higher one) ยฑ1-digit |
| Hysteresis(adjustable sensitivity) | 1 to 100โ/โ(0.1 to 50.0โ/โ) variable |
| Weight | Approx. 146.1g(approx. 86.7g) |
Built for demanding industrial environments, the Autonics TX4S-14R High Performance PID Temp Controller offers stable and high-speed temperature regulation with a sampling cycle of 50ms. It supports a wide 100โ240VAC~ 50/60Hz power range, ensuring compatibility with global panel designs. The unit utilizes a bright 4-digit 11-segment LCD display for quick readability and status updates. It allows precise control through multiple algorithms including ON/OFF, P, PI, PD, and PIDโideal for both steady-state and dynamic thermal processes.
For accurate sensing, the controller accepts a variety of inputs including thermocouples (K, J, T, R, S, L) and RTDs (Pt100, Cu50). The output is via relay contact rated for 250VAC~ 3A or 30VDC 3A, supporting alarms and load switching directly. Its adjustable proportional band (0.1โ999.9ยฐC/โ), integral and derivative times (0โ9999s), and control period (0.5โ120s) allow fine-tuning to meet complex thermal demands. The controller also features adjustable hysteresis for reducing overshoot and offers Alarm 1 output for critical process alerts.
Rated with IP50 protection on the front panel and equipped with double insulation, the TX4S-14R is safe to install in industrial settings with dust exposure. It operates reliably between -10ยฐC and 50ยฐC with humidity up to 85% RH, and offers a dielectric strength of 3kV between circuits. Its internal memory retains settings for approximately 10 years, making it dependable for long-term use. With a lightweight build of approx. 146.1g, the controller is easy to mount in compact panels. For engineers seeking precision, safety, and performance in one device, this controller stands out in its class. For complete specifications and related options, visit the Autonics Temperature Controller section or explore the full Autonics brand page.
Whether you're configuring a standalone thermal process or integrating it into a automation system, the TX4S-14R offers precision, durability, and control confidence. Its flexible inputs and programmable outputs make it a reliable choice for both industrial upgrades and new system designs.
