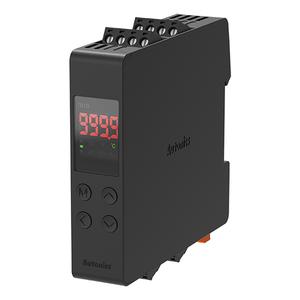

Autonics TR1D-T4CC Temperature Controller
The Autonics TR1D-T4CC Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, 7-segment (red) 4-digit, 50, 100, 250ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TR1D Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TR1D-T4CC |
Autonics TR1D-T4CC Temperature Controller – Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Power consumption | Max. 8VA |
| Sampling cycle | 50, 100, 250ms |
| Display method | 7-segment (red) 4-digit |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃ |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | Relay output: 0.5 to 120.0 sec, SSR output: 0.5 to 120.0 sec |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation (dielectric strength between the charging part and the case: 3 kV) |
| Control output_Current | Selectable DC 4-20mA or DC 0-20mA(load resistance max. 500Ω) |
| Option output_Trans. | DC 4 - 20 mA (load resistance: ≤ 500 Ω, output accuracy: ±0.3% F.S.) |
| Option output_Comm. | RS485 communication output (Modbus RTU/ASCII method) |
| Dielectric strength | Between the charging part and the case : 3,000 VAC~ 50/60 Hz for 1 min |
| Vibration | 0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours |
| Relay life cycle_Mechanical | OUT1/2, AL1/2: min. 5,000,000 operations |
| Relay life cycle_Electrical | OUT1/2, AL1/2: min. 100,000 (resistance load: 250VAC~ 5A) |
| Insulation resistance | 100MΩ or more (500VDC megger basis) |
| Noise immunity | ±2 kV square shaped noise by noise simulator (pulse width: 1 ㎲) R-phase, S-phase |
| Memory Protection | ≈ 10 years (non-volatile semiconductor memory type) |
| Control output_SSR | Max. 12VDC @(=) ±3V 20mA |
| Allowable voltage range | 90 to 110% of rated voltage |
| Input type_RTD | DPt100Ω, Cu50Ω, Nickel120Ω (permissible line resistance max. 5Ω) |
| Input type_TC | K(CA), J(IC), L(IC), T(CC), R(PR), S(PR) |
| Input type_CT | 0.0-50.0A(primary current measurement range) ※CT ratio=1/1000 |
| Display accuracy | RTD/Thermocouple: ㆍ At room temperature (23℃ ±5℃): (PV ±0.3% or ±1℃, select the higher one) ±1-digitㆍ Out of room temperature ranges: (PV ±+H400.5% or ±2℃, select the higher one) ±1-digit |
| Display accuracy_CT input | ±5% F.S. ±1-digit |
| Control output_Hysteresis | Control output: 1 to 100℃/℉ (0.1 to 100.0℃/℉)Alarm output: 1 to 100℃/℉ (0.1 to 50.0℃/℉) |
| Weight | Approx. 194.5g (approx. 123.5g) |
The Autonics TR1D-T4CC is a powerful Slim Single Display PID Temp Controller built for accuracy, durability, and easy integration into automation panels. Operating on 100–240VAC 50/60Hz with a low 8VA power consumption, it offers selectable sampling cycles of 50, 100, or 250ms for fast process response. The 4-digit LED display ensures clear monitoring, while engineers benefit from ON/OFF, P, PI, PD, and PID control modes. Input flexibility includes RTD sensors such as Pt100, Cu50, Ni120 and thermocouples K, J, L, T, R, S, with relay, SSR, and DC 4–20mA outputs to drive heaters, actuators, or monitoring systems. Safety is reinforced with 3kV dielectric strength, ±2kV noise immunity, and long relay life, making the TR1D Autonics Temp Controller dependable in harsh environments.
Applications of the TR1D-T4CC PID Temp Controller include plastics molding machines, food processing ovens, HVAC chambers, and electronic soldering systems where stable and accurate temperature control is critical. OEMs prefer the slim body of the TR1D Series for compact panels, while maintenance teams rely on its long relay life and robust insulation to minimize downtime. Training centers and engineers also use the DIN rail PID controller configuration for real-world PID teaching and testing scenarios.
Professionals often consult the TR1D-T4CC Autonics manual for wiring, configuration, and calibration support. Known for versatility and safe operation, the TR1D T4CC Autonics continues to be trusted across industries as part of the Autonics TR1D range. Engineers sourcing a Temp Controller TR1D appreciate its compatibility, efficiency, and practical usability. Whether for OEM panels or process upgrades, the TR1D Autonics Temp Controller offers long-term reliability and ensures stable thermal regulation in industrial environments.
