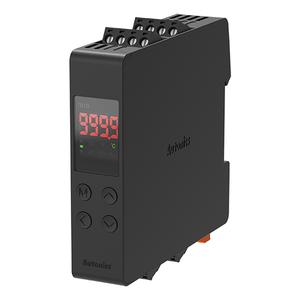

Autonics TR1D-14RN Temperature Controller
The Autonics TR1D-14RN Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, 7-segment (red) 4-digit, 50, 100, 250ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TR1D Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TR1D-14RN |
Autonics TR1D-14RN Temperature Controller – Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Power consumption | Max. 8VA |
| Sampling cycle | 50, 100, 250ms |
| Display method | 7-segment (red) 4-digit |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃ |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | Relay output: 0.5 to 120.0 sec, SSR output: 0.5 to 120.0 sec |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation (dielectric strength between the charging part and the case: 3 kV) |
| Control output_Relay | 250VAC~ 3A 1a |
| Dielectric strength | Between the charging part and the case : 3,000 VAC~ 50/60 Hz for 1 min |
| Vibration | 0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours |
| Relay life cycle_Mechanical | OUT1/2, AL1/2: min. 5,000,000 operations |
| Relay life cycle_Electrical | OUT1/2, AL1/2: min. 100,000 (resistance load: 250VAC~ 5A) |
| Insulation resistance | 100MΩ or more (500VDC megger basis) |
| Noise immunity | ±2 kV square shaped noise by noise simulator (pulse width: 1 ㎲) R-phase, S-phase |
| Memory Protection | ≈ 10 years (non-volatile semiconductor memory type) |
| Allowable voltage range | 90 to 110% of rated voltage |
| Input type_RTD | DPt100Ω, Cu50Ω, Nickel120Ω (permissible line resistance max. 5Ω) |
| Input type_TC | K(CA), J(IC), L(IC), T(CC), R(PR), S(PR) |
| Input type_CT | 0.0-50.0A(primary current measurement range) ※CT ratio=1/1000 |
| Display accuracy | RTD/Thermocouple: ㆍ At room temperature (23℃ ±5℃): (PV ±0.3% or ±1℃, select the higher one) ±1-digitㆍ Out of room temperature ranges: (PV ±+H400.5% or ±2℃, select the higher one) ±1-digit |
| Display accuracy_CT input | ±5% F.S. ±1-digit |
| Control output_Hysteresis | Control output: 1 to 100℃/℉ (0.1 to 100.0℃/℉)Alarm output: 1 to 100℃/℉ (0.1 to 50.0℃/℉) |
| Weight | Approx. 194.5g (approx. 123.5g) |
IndMALL Automation Dealing offers Slim Single Display PID Temp Controllers TR1D-14RN at unbeatable prices. The Main Technical Parameters of TR1D-14RN are the power supply range of 100-240VAC~ 50/60Hz, ensuring reliable operation across various applications. The controller boasts a sampling cycle of 50, 100, 250ms for precise temperature monitoring and control. It features suitable for versatile control requirements. The control methods include ON/OFF, P, PI, PD, PID, catering to diverse industrial needs. Despite its robust capabilities, the device is lightweight at Approx. 194.5g (approx. 123.5g). Operating conditions are optimized for ambient temperatures of -10 to 50℃, storage: -20 to 60℃, with a humidity range of 35 to 85% RH, storage: 35 to 85% RH for both operation and storage. The controller is 7-segment (red) 4-digit, ensuring simplicity in design while maintaining high functionality. Take the First Step with a Quote for your requirement of Slim Single Display PID Temp Controllers. Choose us for unparalleled pricing and support over other Dealers & Distributors.
