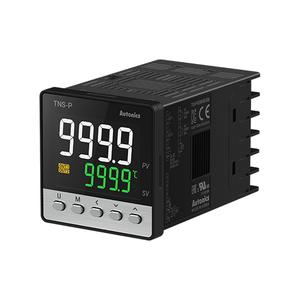

Autonics TNS-P42CC-NS-026 Temperature Controller
The Autonics TNS-P42CC-NS-026 Temperature Controller offers control method, 100-240VAC~ 50/60Hz power supply, 11 segment, LCD type (operating value display part: 7 segment), 50 / 100 / 250 ms (parameter). Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TN Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TNS-P42CC-NS-026 |
Autonics TNS-P42CC-NS-026 Temperature Controller – Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Power consumption | Max. 8VA |
| Sampling cycle | 50 / 100 / 250 ms (parameter) |
| Hysteresis | • Thermocouple, RTD: 1 to 100 (0.1 to 100.0) ℃/℉• Analog: 1 to 100 digit |
| Display method | 11 segment, LCD type (operating value display part: 7 segment) |
| Insulation type | Double insulation or reinforced insulation (mark: @(INS), dielectric strength between the measuring input part and the power part: 3 kV) |
| Option input_CT input | • 0.0-50.0 A (primary current measurement range)• CT ratio: 1/1 |
| Control output_Current | DC 0 - 20 mA or DC 4 - 20 mA (parameter), Load resistance: ≤ 500 Ω |
| Option output_Alarm | 250VAC~ 3A 1a |
| Option output_Trans. | DC 4 - 20 mA (load resistance: ≤ 500 Ω, output accuracy: ±0.3% F.S.) |
| Control type_Type | ON/OFF, P, PI, PD, PID |
| Control type_Multi SV | ≤ 4 SV |
| Control type_Group PID | ≤ 8 group |
| Control type_Zone PID | 4 zones |
| Control type_ARW | 50 to 200 % |
| Dielectric strength | Between primary terminal and case: 3,000 VAC~ 50/60 Hz for 1 min |
| Vibration | 0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours |
| Relay life cycle_Mechanical | • OUT1/2: ≥ 5,000,000 operations• AL1/2/3/4/5/6: ≥ 20,000,000 operations |
| Relay life cycle_Electrical | • OUT1/2: ≥ 200,000 operations• AL1/2/3/4/5/6: ≥ 100,000 operations |
| Insulation resistance | ≥ 100 MΩ (500 VDC@(=) megger) |
| Noise immunity | ±2 kV square shaped noise by noise simulator (pulse width: 1 ㎲) R-phase, S-phase |
| Memory Protection | ≈ 10 years (non-volatile semiconductor memory type) |
| Ambient temperature | -10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation) |
| Ambient humidity | 35 to 85%RH |
| Protection structure | IP65 (Front panel, IEC standards) |
| Loader port | Top side |
| Accessories | Bracket |
| Program control_Program | ≤ 10 patterns |
| Program control_Step | ≤ 200 steps (1 pattern: ≤ 20 steps) |
| Program control_Setting type | Time setting |
| Weight | 128 g |
Please speak to our Technical Engineer for 2-DOF PID Temperature Controllers TNS-P42CC-NS-026 at attractive prices. Technical Specs Summary of TNS-P42CC-NS-026 includes the power supply range of 100-240VAC~ 50/60Hz, ensuring reliable operation across various applications. The controller boasts a sampling cycle of 50 / 100 / 250 ms (parameter) for precise temperature monitoring and control. It features suitable for versatile control requirements. The control methods include , catering to diverse industrial needs. Despite its robust capabilities, the device is lightweight at 128 g. Operating conditions are optimized for ambient temperatures of , with a humidity range of for both operation and storage. The controller is 11 segment, LCD type (operating value display part: 7 segment), ensuring simplicity in design while maintaining high functionality. Match Your Needs with a Quote for your requirement of 2-DOF PID Temperature Controllers. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
