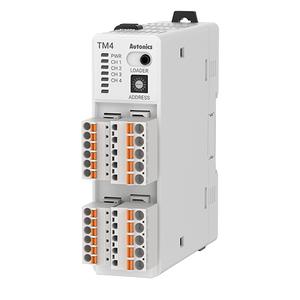

Autonics TM4-N2SE - Modular Multi-Channel PID Temp Controllers
Technical Specifications of Autonics Modular Multi-Channel PID Temp Controllers TM4-N2SE:
| Spec | Value |
|---|
| Power supply | 24VDC @(=) ±10% |
| Control output | 22 VDC@(=) ±3 V, ≤ 30 mA |
| Control method | ON/OFF, P, PI, PD, PID |
Autonics Modular Multi-Channel PID Temp Controllers TM4-N2SE Technical Specifications
| Specification | Value |
|---|
| Number of input channels | 4-channel |
| Power supply | 24VDC @(=) ±10% |
| Power consumption | ≤ 5 W (for Max. load) |
| Sampling cycle | 100ms(4-CH synchronous sampling) |
| RS485 Comm. | Modbus ASCII / RTU |
| Control output | 22 VDC@(=) ±3 V, ≤ 30 mA |
| Hysteresis | 1 to 100 (0.1 to 100) ℃/℉ |
| Display method | Non-display |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃/℉ |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | 0.1 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV) |
| Weight_Expansion module | Approx. 231g(approx. 166g) |
