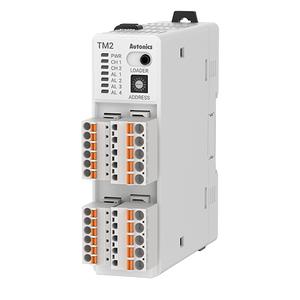

Autonics TM2-42CE Temperature Controller
The Autonics TM2-42CE Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 2-channel input, Non-display, 50ms(2-CH synchronous sampling). Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TM Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TM2-42CE |
Autonics TM2-42CE Temperature Controller – Technical Specifications
| Specification | Value |
|---|---|
| Number of input channels | 2-channel |
| Power supply | 24VDC @(=) ±10% |
| Power consumption | ≤ 5 W (for Max. load) |
| Sampling cycle | 50ms(2-CH synchronous sampling) |
| RS485 Comm. | Modbus ASCII / RTU |
| Control output | DC 4-20 mA or DC 0-20 mA (Load resistance: ≤ 500 Ω) |
| Hysteresis | 1 to 100 (0.1 to 100) ℃/℉ |
| Display method | Non-display |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃/℉ |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | 0.1 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV) |
| Alarm output | 250 VAC~ 3A 1a |
| Option input | CT, Digital(DI-1/2) |
| Weight_Expansion module | Approx. 208g(approx. 143g) |
Send Your Inquiry for Modular Multi-Channel PID Temp Controllers TM2-42CE with cost-effective solutions. Essential Technical Specs of TM2-42CE are the power supply range of 24VDC @(=) ±10%, ensuring reliable operation across various applications. The controller boasts a sampling cycle of 50ms(2-CH synchronous sampling) for precise temperature monitoring and control. It features suitable for versatile control requirements. The control methods include ON/OFF, P, PI, PD, PID, catering to diverse industrial needs. Despite its robust capabilities, the device is lightweight at . Operating conditions are optimized for ambient temperatures of -10 to 50℃, storage: -20 to 60℃, with a humidity range of 35 to 85% RH, storage: 35 to 85% RH for both operation and storage. The controller is Non-display, ensuring simplicity in design while maintaining high functionality. Capture the Best Deal with a Quote for your requirement of Modular Multi-Channel PID Temp Controllers. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
