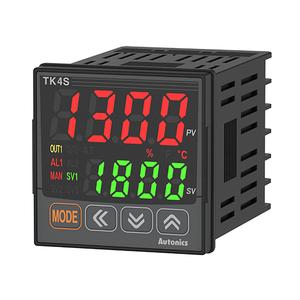

Autonics TK4S-R4SR Temperature Controller
The Autonics TK4S-R4SR Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, 4-digit 7-segment LED, 50ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TK Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TK4S-R4SR |
Autonics TK4S-R4SR Temperature Controller β Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 50ms |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9β/β(0.1 to 999.9%) |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50β, storage: -20 to 60β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 2kV) |
| Option input | CT, Digital(DI-1) |
| Protection structure | IP65(front panel) |
| Display accuracy_CT input | Β±5% F.S. Β±1-digit |
| Input specification | Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel IIRTD: DPt100Ξ©, DPt50Ξ©, JPt100Ξ©, Cu100Ξ©, Cu50Ξ©, Nikel 120Ξ©Analog: 0-100mV, 0-5V, 1-5V, 0-10V0-20mA, 4-20mA |
| Option output | Alarm 1, Transmission(DC4-20mA) |
| Display accuracy_RTD | β’At room temperature(23βΒ±5β):(PV Β±0.3% or Β±1β, select the higher one) Β±1-digitβ’Out of room temperature:(PV Β±0.5% or Β±2β, select the higher one) Β±1-digit |
| Display accuracy_Thermocouple | β’At room temperature(23βΒ±5β):(PV Β±0.3% or Β±1β, select the higher one) Β±1-digitβ’Out of room temperature:(PV Β±0.5% or Β±2β, select the higher one) Β±1-digit |
| Hysteresis(adjustable sensitivity) | RTD/Thermocouples: 1 to 100β/β(0.1 to 100.0β/β) variable Analog: 1 to 100-digit |
| Control output 1 | SSR drive(11VDC @(=)) [ON/OFF, phase, cycle] |
| Display accuracy_Analog | β’At room temperature(23βΒ±5β): Β±0.3% F.S. Β±1-digitβ’Out of range of room temperature: Β±0.5β% F.S. Β±1-digit |
| Control output 2 | Relay(250VAC~ 3A) |
| Weight | Approx. 150g(approx. 105g) |
The Autonics TK4S-R4SR Temperature Controller is engineered for high-speed and accurate thermal regulation, powered by a universal 100β240VAC~ 50/60Hz supply. With a sampling cycle of 50ms, it ensures rapid and consistent temperature adjustments. It supports a wide array of input signals including thermocouples (K, J, T, R, S, B, etc.), RTDs such as Pt100 and JPt100, and analog inputs ranging from 0β100mV to 4β20mA. This broad input compatibility makes it suitable for multiple industrial setups, including legacy and modern systems.
The controller offers advanced P, PI, PD, and PID control methods, along with manual reset and adjustable hysteresis for fine-tuned process control. It features dual control outputs β an SSR drive (11VDC) and a relay output (250VAC 3A) β enabling integration into various load circuits. The IP65-rated front panel ensures protection against dust and water, while its double insulation and 2kV dielectric strength deliver electrical safety in harsh industrial environments. Precision is further supported with display accuracy of Β±0.3% at room temperature across CT, RTD, thermocouple, and analog signals. Despite these robust specifications, the unit remains compact and lightweight at approximately 150g, allowing for efficient panel space utilization and installation flexibility.
Whether you're managing temperature in plastics processing, ovens, kilns, packaging systems, or HVAC units, the TK4S-R4SR is built to perform reliably. Maintenance engineers benefit from the intuitive 4-digit LED display and fast setup, reducing downtime and simplifying diagnostics. For students and automation trainees, it provides a practical example of real-time PID loop tuning and input signal handling. With its balance of features, safety, and reliability, the TK4S-R4SR is a preferred choice across manufacturing plants, test labs, and engineering institutions. View complete specifications on Autonics official website.
