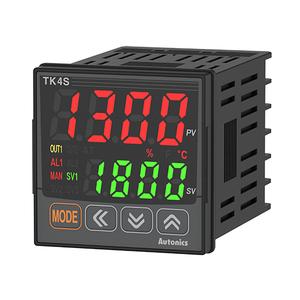

Autonics TK4S-R4CN Temperature Controller
The Autonics TK4S-R4CN Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, 4-digit 7-segment LED, 50ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TK Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TK4S-R4CN |
Autonics TK4S-R4CN Temperature Controller – Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 50ms |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃/℉(0.1 to 999.9%) |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 2kV) |
| Option input | CT, Digital(DI-1) |
| Protection structure | IP65(front panel) |
| Display accuracy_CT input | ±5% F.S. ±1-digit |
| Input specification | Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel IIRTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120ΩAnalog: 0-100mV, 0-5V, 1-5V, 0-10V0-20mA, 4-20mA |
| Option output | Alarm 1, Transmission(DC4-20mA) |
| Display accuracy_RTD | •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit•Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
| Display accuracy_Thermocouple | •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit•Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
| Hysteresis(adjustable sensitivity) | RTD/Thermocouples: 1 to 100℃/℉(0.1 to 100.0℃/℉) variable Analog: 1 to 100-digit |
| Control output 1 | Current(DC0/4-20mA) or SSR drive(11VDC @(=)) [ON/OFF] |
| Display accuracy_Analog | •At room temperature(23℃±5℃): ±0.3% F.S. ±1-digit•Out of range of room temperature: ±0.5℃% F.S. ±1-digit |
| Control output 2 | - |
| Weight | Approx. 150g(approx. 105g) |
The Autonics TK4S-R4CN High Performance PID Temp Controller is engineered for precision and adaptability. It operates on a wide input voltage of 100–240VAC and delivers ultra-fast control with a 50ms sampling cycle. This controller supports relay, SSR drive, and analog current outputs, enabling seamless deployment in varied industrial applications.
The TK4S-R4CN supports multiple control methods—ON/OFF, P, PI, PD, and PID—making it suitable for both basic and highly tuned temperature systems. Its high-accuracy display (±0.3% F.S.) provides clear, real-time process feedback on a 4-digit 7-segment LED screen. Reinforced with 2kV insulation and IP65 front panel protection, the Autonics TK4S-R4CN High Performance PID Temp Controller performs reliably in dusty, humid, and high-interference environments. Optional features like 4–20mA transmission and alarms offer easy integration with PLCs, HMIs, and SCADA systems—making it a trusted choice for engineers and system designers alike.
Maintenance teams prefer this model for its stable operation and minimal recalibration needs. System integrators appreciate its ability to work with thermocouples, RTDs, and analog inputs in a single unit. To more options under this product category, visit the Autonics Temperature Controllers page. For a broader range of sensing and control solutions, check out the Autonics Sensors & Controllers section on IndMALL.
