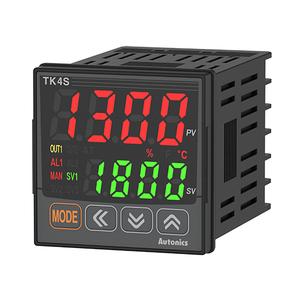

Autonics TK4S-24SN Temperature Controller
The Autonics TK4S-24SN Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, 4-digit 7-segment LED, 50ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TK Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TK4S-24SN |
Autonics TK4S-24SN Temperature Controller β Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 50ms |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9β/β(0.1 to 999.9%) |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50β, storage: -20 to 60β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 2kV) |
| Option input | CT, Digital(DI-1) |
| Protection structure | IP65(front panel) |
| Display accuracy_CT input | Β±5% F.S. Β±1-digit |
| Input specification | Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel IIRTD: DPt100Ξ©, DPt50Ξ©, JPt100Ξ©, Cu100Ξ©, Cu50Ξ©, Nikel 120Ξ©Analog: 0-100mV, 0-5V, 1-5V, 0-10V0-20mA, 4-20mA |
| Option output | Alarm 1/2 |
| Display accuracy_RTD | β’At room temperature(23βΒ±5β):(PV Β±0.3% or Β±1β, select the higher one) Β±1-digitβ’Out of room temperature:(PV Β±0.5% or Β±2β, select the higher one) Β±1-digit |
| Display accuracy_Thermocouple | β’At room temperature(23βΒ±5β):(PV Β±0.3% or Β±1β, select the higher one) Β±1-digitβ’Out of room temperature:(PV Β±0.5% or Β±2β, select the higher one) Β±1-digit |
| Hysteresis(adjustable sensitivity) | RTD/Thermocouples: 1 to 100β/β(0.1 to 100.0β/β) variable Analog: 1 to 100-digit |
| Control output 1 | SSR drive(11VDC @(=)) [ON/OFF, phase, cycle] |
| Display accuracy_Analog | β’At room temperature(23βΒ±5β): Β±0.3% F.S. Β±1-digitβ’Out of range of room temperature: Β±0.5β% F.S. Β±1-digit |
| Control output 2 | - |
| Weight | Approx. 150g(approx. 105g) |
The Autonics TK4S-24SN is engineered for demanding industrial applications, operating on a universal 100β240VAC 50/60Hz supply and featuring a rapid 50ms sampling cycle. With control methods including ON/OFF, P, PI, PD, and full PID, this TK4S24SN temperature controller provides flexibility for both simple and advanced process loops. The TK4S-24SN Autonics specifications highlight its wide proportional band of 0.1β999.9Β°C/Β°F, adjustable integral and derivative times up to 9999 seconds, and fine hysteresis control, ensuring superior process tuning and system stability.
Input compatibility is extensive, supporting thermocouples (K, J, E, T, R, S, B, N, C, G, L, U, Platinel II), RTDs (Pt100Ξ©, Cu50Ξ©), and analog signals (0β10V, 0β20mA, 4β20mA). Its multi-input digital temperature controller design makes it highly adaptable to legacy systems and modern automation panels. With a TK4S-24SN SSR output model rated at 11VDC for solid-state relays, it reduces wear, enhances safety, and minimizes electrical noise. Built-in double insulation and 2kV dielectric strength ensure safe operation, while its IP65-rated front panel provides protection against dust and water splashes, making it suitable for harsh plant conditions.
Maintenance engineers and automation professionals in India rely on the Autonics TK4S series PID controller for long-term stability, efficient control, and easy integration. Wholesalers, dealers, and distributors stock this Autonics 24V temperature controller as part of their industrial portfolios, making it accessible for both OEM projects and retrofits. Frequently compared with the Autonics TK4S-24SN datasheet PDF, buyers evaluate the TK4S-24SN temperature controller price India before placing orders. Many engineers prefer to Buy Autonics TK4S-24SN online, Order Autonics TK4S-24SN PID controller, or source directly from TK4S-24SN dealers in India. As a trusted industrial PID temperature controller TK4S-24SN, it remains one of the most dependable solutions in the Autonics TK4S-24SN model range. For full technical details, visit the official Autonics Temperature Controller page.
