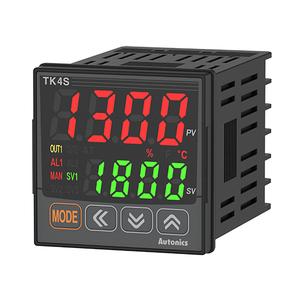

Autonics TK4S-22CN Temperature Controller
The Autonics TK4S-22CN Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 24VAC~ 50/60Hz, 24-48VDC power supply, 4-digit 7-segment LED, 50ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TK Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TK4S-22CN |
Autonics TK4S-22CN Temperature Controller β Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 24VAC~ 50/60Hz, 24-48VDC |
| Sampling cycle | 50ms |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9β/β(0.1 to 999.9%) |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50β, storage: -20 to 60β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 2kV) |
| Option input | CT, Digital(DI-1) |
| Protection structure | IP65(front panel) |
| Display accuracy_CT input | Β±5% F.S. Β±1-digit |
| Input specification | Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel IIRTD: DPt100Ξ©, DPt50Ξ©, JPt100Ξ©, Cu100Ξ©, Cu50Ξ©, Nikel 120Ξ©Analog: 0-100mV, 0-5V, 1-5V, 0-10V0-20mA, 4-20mA |
| Option output | Alarm 1/2 |
| Display accuracy_RTD | β’At room temperature(23βΒ±5β):(PV Β±0.3% or Β±1β, select the higher one) Β±1-digitβ’Out of room temperature:(PV Β±0.5% or Β±2β, select the higher one) Β±1-digit |
| Display accuracy_Thermocouple | β’At room temperature(23βΒ±5β):(PV Β±0.3% or Β±1β, select the higher one) Β±1-digitβ’Out of room temperature:(PV Β±0.5% or Β±2β, select the higher one) Β±1-digit |
| Hysteresis(adjustable sensitivity) | RTD/Thermocouples: 1 to 100β/β(0.1 to 100.0β/β) variable Analog: 1 to 100-digit |
| Control output 1 | Current(DC0/4-20mA) or SSR drive(11VDC @(=)) [ON/OFF] |
| Display accuracy_Analog | β’At room temperature(23βΒ±5β): Β±0.3% F.S. Β±1-digitβ’Out of range of room temperature: Β±0.5β% F.S. Β±1-digit |
| Control output 2 | - |
| Weight | Approx. 150g(approx. 105g) |
The Autonics TK4S-22CN Temperature Controller delivers exceptional precision and stability with a sampling cycle of 50ms, making it ideal for fast-response applications. Powered by 24VAC~ 50/60Hz or 24-48VDC, it supports multiple control methods including ON/OFF, P, PI, PD, and PID, giving engineers the flexibility to fine-tune performance. With a wide proportional band of 0.1 to 999.9Β°C/β, and integral and derivative times configurable up to 9999 seconds, the controller ensures smooth and accurate process control. Its robust LED display provides clear visibility, and the IP65 front panel protection safeguards it from dust and splashes, making it suitable for harsh industrial environments. Input compatibility ranges across thermocouples, RTDs, and analog signals, ensuring seamless integration with a variety of sensors. Despite its powerful capabilities, it remains compact and lightweight at just 150g, contributing to easy panel integration. Precision is further enhanced with Β±0.3% F.S. accuracy for analog inputs and advanced hysteresis controls for stable switching. The TK4S-22CN reflects Autonicsβ commitment to quality, reliability, and process optimization across a range of industrial sectors.
The Autonics TK4S-22CN Temperature Controller is commonly used in injection molding machines, food processing systems, packaging lines, and heating equipment. For junior maintenance engineers, the intuitive interface and compact design make setup and monitoring straightforward. For senior engineers, the advanced tuning parameters and selectable control modes provide the depth needed for fine-grained thermal control. In academic labs or engineering colleges, this model is often chosen for demonstrating real-world PID control due to its versatile input support and quick response time. Whether managing thermal profiles in ovens or ensuring process consistency in curing applications, the TK4S-22CN adapts effectively to the requirements. Its compatibility with various sensor types and its durable build make it a long-term asset for both new and legacy systems. Explore the full specifications and manuals on the official Autonics TK4S-22CN product page.
