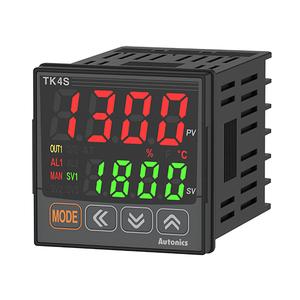

Autonics TK4S-14CN Temperature Controller
The Autonics TK4S-14CN Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, 4-digit 7-segment LED, 50ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TK Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TK4S-14CN |
Autonics TK4S-14CN Temperature Controller β Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 50ms |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9β/β(0.1 to 999.9%) |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50β, storage: -20 to 60β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 2kV) |
| Option input | CT, Digital(DI-1) |
| Protection structure | IP65(front panel) |
| Display accuracy_CT input | Β±5% F.S. Β±1-digit |
| Input specification | Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel IIRTD: DPt100Ξ©, DPt50Ξ©, JPt100Ξ©, Cu100Ξ©, Cu50Ξ©, Nikel 120Ξ©Analog: 0-100mV, 0-5V, 1-5V, 0-10V0-20mA, 4-20mA |
| Option output | Alarm 1 |
| Display accuracy_RTD | β’At room temperature(23βΒ±5β):(PV Β±0.3% or Β±1β, select the higher one) Β±1-digitβ’Out of room temperature:(PV Β±0.5% or Β±2β, select the higher one) Β±1-digit |
| Display accuracy_Thermocouple | β’At room temperature(23βΒ±5β):(PV Β±0.3% or Β±1β, select the higher one) Β±1-digitβ’Out of room temperature:(PV Β±0.5% or Β±2β, select the higher one) Β±1-digit |
| Hysteresis(adjustable sensitivity) | RTD/Thermocouples: 1 to 100β/β(0.1 to 100.0β/β) variable Analog: 1 to 100-digit |
| Control output 1 | Current(DC0/4-20mA) or SSR drive(11VDC @(=)) [ON/OFF] |
| Display accuracy_Analog | β’At room temperature(23βΒ±5β): Β±0.3% F.S. Β±1-digitβ’Out of range of room temperature: Β±0.5β% F.S. Β±1-digit |
| Control output 2 | - |
| Weight | Approx. 150g(approx. 105g) |
The Autonics TK4S-14CN High Performance PID Temp Controller supports versatile control with multiple modes including ON/OFF, P, PI, PD, and PID, making it suitable for both simple and advanced thermal regulation tasks. Designed to operate on a wide 100β240VAC~ 50/60Hz power range, it adapts easily to diverse industrial environments. With a 50ms sampling cycle, the controller ensures real-time temperature correction for faster response in dynamic processes. It supports a broad range of input types β thermocouples, RTDs, and analog signals β and achieves a high display accuracy of Β±0.3% F.S. Β±1-digit at standard room temperature, which enhances operational confidence for engineers.
This compact unit weighs only approx. 150g and features a 4-digit 7-segment LED display that offers crystal-clear visibility in control rooms and harsh floor environments. Its front panel is IP65-rated, ensuring resistance to dust, oil, and water exposure β a must-have in rugged manufacturing conditions. Advanced functions like adjustable hysteresis, optional CT/Digital input, and dual insulation with 2kV dielectric strength enhance both usability and safety. Whether youβre replacing legacy controllers or building smart process lines, the TK4S-14CN ensures compatibility, speed, and precision trusted by automation professionals.
For maintenance engineers, the device's compact size and intuitive LED interface reduce troubleshooting time and panel layout effort. Junior engineers and trainees benefit from its logical PID tuning options and visual feedback, allowing them to build hands-on understanding without relying on external programming tools. Meanwhile, experienced professionals appreciate its stability, fast response cycle, and built-in protection features like reinforced insulation and wide ambient tolerance.
If you are looking to upgrade outdated controllers or standardize PID control across different lines, the Autonics TK4S-14CN offers a reliable platform that balances cost, functionality, and ease of use. For detailed datasheets, integration guides, or support, visit the official Autonics Temperature Controller page on IndMALL.
