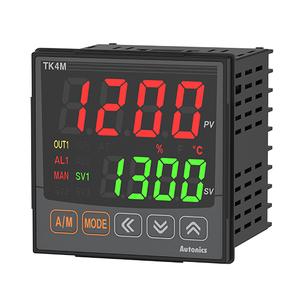

Autonics TK4M-14SR Temperature Controller
The Autonics TK4M-14SR Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, 4-digit 7-segment LED, 50ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TK Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TK4M-14SR |
Autonics TK4M-14SR Temperature Controller β Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 50ms |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9β/β(0.1 to 999.9%) |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50β, storage: -20 to 60β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 2kV) |
| Option input | CT, Digital(DI-1) |
| Protection structure | IP65(front panel) |
| Display accuracy_CT input | Β±5% F.S. Β±1-digit |
| Input specification | Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel IIRTD: DPt100Ξ©, DPt50Ξ©, JPt100Ξ©, Cu100Ξ©, Cu50Ξ©, Nikel 120Ξ©Analog: 0-100mV, 0-5V, 1-5V, 0-10V0-20mA, 4-20mA |
| Option output | Alarm 1 |
| Display accuracy_RTD | β’At room temperature(23βΒ±5β):(PV Β±0.3% or Β±1β, select the higher one) Β±1-digitβ’Out of room temperature:(PV Β±0.5% or Β±2β, select the higher one) Β±1-digit |
| Display accuracy_Thermocouple | β’At room temperature(23βΒ±5β):(PV Β±0.3% or Β±1β, select the higher one) Β±1-digitβ’Out of room temperature:(PV Β±0.5% or Β±2β, select the higher one) Β±1-digit |
| Hysteresis(adjustable sensitivity) | RTD/Thermocouples: 1 to 100β/β(0.1 to 100.0β/β) variable Analog: 1 to 100-digit |
| Control output 1 | SSR drive(11VDC @(=)) [ON/OFF, phase, cycle] |
| Display accuracy_Analog | β’At room temperature(23βΒ±5β): Β±0.3% F.S. Β±1-digitβ’Out of range of room temperature: Β±0.5β% F.S. Β±1-digit |
| Control output 2 | Relay(250VAC~ 3A) |
| Weight | Approx. 210g(approx. 140g) |
Built for control accuracy and application flexibility, the Autonics TK4M-14SR operates on a 100β240VAC~ 50/60Hz power supply and features a fast 50ms sampling cycle for responsive process adjustments. It supports ON/OFF, P, PI, PD, and PID control methods and provides clear monitoring through a 4-digit 7-segment LED display. The controller handles a broad range of sensor inputs, including thermocouples (K, J, T, E), RTDs (Pt100, JPt100, Cu100), and analog signals such as 4β20mA and 0β10V. Its SSR drive output (11VDC) and relay output (250VAC~ 3A) allow flexible integration with heaters and other control elements.
The unit includes manual reset, hysteresis adjustment, and alarm outputs for added control capability. Accuracy is maintained within Β±0.3% F.S. under standard conditions, and safety is ensured through IP65-rated front protection and 2kV reinforced insulation. The controller weighs approximately 210g and performs reliably across an ambient temperature range of -10Β°C to 50Β°C, with humidity tolerance up to 85% RH. Support for optional CT input and digital input (DI-1) further enhances its adaptability in demanding automation environments.
The Autonics TK4M-14SR is well-suited for retrofitting older systems and deploying in new automation panels. Its proven design, wide input compatibility, and strong environmental protection make it a dependable component for stable thermal control in industrial processes. For complete specifications, refer to the official Autonics TK4M-14SR product page.
