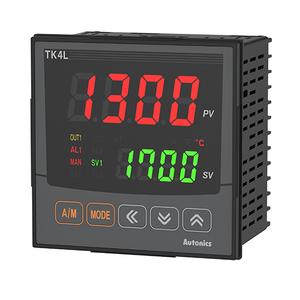

Autonics TK4L-T2CC Temperature Controller
The Autonics TK4L-T2CC Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 24VAC~ 50/60Hz, 24-48VDC power supply, 4-digit 7-segment LED, 50ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TK Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TK4L-T2CC |
Autonics TK4L-T2CC Temperature Controller – Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 24VAC~ 50/60Hz, 24-48VDC |
| Sampling cycle | 50ms |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃/℉(0.1 to 999.9%) |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 2kV) |
| Option input | CT, Digital(DI-1/2) |
| Protection structure | IP65(front panel) |
| Display accuracy_CT input | ±5% F.S. ±1-digit |
| Input specification | Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel IIRTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120ΩAnalog: 0-100mV, 0-5V, 1-5V, 0-10V0-20mA, 4-20mA |
| Option output | Alarm 1, RS485 comm. |
| Display accuracy_RTD | •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit•Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
| Display accuracy_Thermocouple | •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit•Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
| Hysteresis(adjustable sensitivity) | RTD/Thermocouples: 1 to 100℃/℉(0.1 to 100.0℃/℉) variable Analog: 1 to 100-digit |
| Control output 1 | Current(DC0/4-20mA) or SSR drive(11VDC @(=)) [ON/OFF] |
| Display accuracy_Analog | •At room temperature(23℃±5℃): ±0.3% F.S. ±1-digit•Out of range of room temperature: ±0.5℃% F.S. ±1-digit |
| Control output 2 | Current(DC0/4-20mA) or SSR drive(11VDC @(=)) [ON/OFF] |
| Weight | Approx. 294g(approx. 198g) |
The Autonics TK4L-T2CC is a dependable High Performance PID Temp Controller built for accurate temperature regulation across diverse industrial automation systems. Powered by 24VAC 50/60Hz or 24–48VDC, it ensures stable performance even in variable environments. A fast 50ms sampling cycle provides real-time adjustments, while supported modes—ON/OFF, P, PI, PD, and PID—offer engineers the flexibility to optimize heating or cooling systems. The bright 4-digit LED display allows clear monitoring of process and set values, while dual current or SSR drive outputs ensure compatibility with a wide range of actuators. With reinforced insulation, 2kV dielectric strength, ±0.3% F.S. accuracy, and IP65-rated panel protection, the TK4L-T2CC Autonics controller guarantees durability and safety for demanding operations.
Applications of the TK4L-T2CC Temperature Controller include plastic extrusion, packaging machines, food and pharmaceutical processing, sterilization equipment, and laboratory heating setups. Maintenance teams value its reliability and long-term stability, while OEMs benefit from compact panel mounting and versatile analog/digital input compatibility. Built-in alarm outputs, hysteresis adjustment, and RS485 communication enable seamless integration with SCADA and PLC systems, supporting remote monitoring and automation upgrades. The Autonics TK4L Temperature Controller is also widely adopted in training institutes where engineering students learn modern PID control and automation concepts through its intuitive design and transparent performance.
Procurement managers evaluating the TK4L-T2CC Autonics model often reference its datasheet and manual to confirm suitability, accuracy, and installation standards. Available through wholesalers, dealers, and distributors, this controller is recognized for its balance of speed, flexibility, and proven industrial resilience. By combining advanced PID functions, robust insulation, and reliable communication features, the Autonics TK4L-T2CC Temperature Controller continues to be a trusted solution for Indian industries. For complete specifications and detailed documentation, visit the official Autonics Temperature Controller page.
