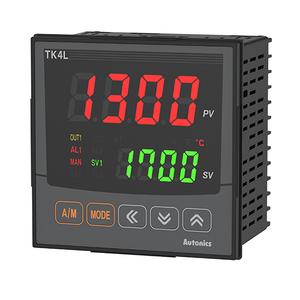

Autonics TK4L-B4CC Temperature Controller
The Autonics TK4L-B4CC Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, 4-digit 7-segment LED, 50ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TK Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TK4L-B4CC |
Autonics TK4L-B4CC Temperature Controller โ Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 50ms |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9โ/โ(0.1 to 999.9%) |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50โ, storage: -20 to 60โ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 2kV) |
| Option input | CT, Digital(DI-1/2) |
| Protection structure | IP65(front panel) |
| Display accuracy_CT input | ยฑ5% F.S. ยฑ1-digit |
| Input specification | Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel IIRTD: DPt100ฮฉ, DPt50ฮฉ, JPt100ฮฉ, Cu100ฮฉ, Cu50ฮฉ, Nikel 120ฮฉAnalog: 0-100mV, 0-5V, 1-5V, 0-10V0-20mA, 4-20mA |
| Option output | Alarm 1/2, RS485 comm. |
| Display accuracy_RTD | โขAt room temperature(23โยฑ5โ):(PV ยฑ0.3% or ยฑ1โ, select the higher one) ยฑ1-digitโขOut of room temperature:(PV ยฑ0.5% or ยฑ2โ, select the higher one) ยฑ1-digit |
| Display accuracy_Thermocouple | โขAt room temperature(23โยฑ5โ):(PV ยฑ0.3% or ยฑ1โ, select the higher one) ยฑ1-digitโขOut of room temperature:(PV ยฑ0.5% or ยฑ2โ, select the higher one) ยฑ1-digit |
| Hysteresis(adjustable sensitivity) | RTD/Thermocouples: 1 to 100โ/โ(0.1 to 100.0โ/โ) variable Analog: 1 to 100-digit |
| Control output 1 | Current(DC0/4-20mA) or SSR drive(11VDC @(=)) [ON/OFF] |
| Display accuracy_Analog | โขAt room temperature(23โยฑ5โ): ยฑ0.3% F.S. ยฑ1-digitโขOut of range of room temperature: ยฑ0.5โ% F.S. ยฑ1-digit |
| Control output 2 | Current(DC0/4-20mA) or SSR drive(11VDC @(=)) [ON/OFF] |
| Weight | Approx. 294g(approx. 198g) |
The Autonics TK4L-B4CC supports a wide 100โ240VAC~ 50/60Hz power range, ensuring consistent operation even with voltage fluctuations. It delivers fast thermal feedback through a 50ms sampling cycle, helping process control systems respond in real time. The unit features a clear 4-digit 7-segment LED display and advanced PID logic that includes ON/OFF, P, PI, PD, and full PID control, giving engineers total flexibility in configuring control loops.
Input versatility is a key advantageโthis model accepts various thermocouples (K, J, T, R, etc.), RTDs (Pt100, Cu100), and analog signals (4โ20mA, 0โ10V), making it suitable for both legacy and modern systems. The control outputs include current (DC 0/4โ20mA) or SSR drive (11VDC), compatible with PLCs, solid-state relays, and actuator systems. Built-in RS485 communication enables remote monitoring or integration into SCADA and HMI platforms.
The TK4L-B4CC features IP65 front panel protection against dust and liquids, reinforced with 2kV insulation between input and power sections for operational safety. It performs reliably in temperatures ranging from -10ยฐC to 50ยฐC, with up to 85% relative humidity. Engineers can fine-tune behavior using adjustable proportional band (0.1โ999.9ยฐC), integral and derivative times (0โ9999 sec), and hysteresis for stable loop tuning. CT input, dual alarms, and digital inputs provide additional control logic flexibility, making it a preferred model for precision-critical applications.
Maintenance engineers value its display clarity, sensor range flexibility, and the ability to configure outputs for relay logic or SSR-based systems. For automation teams, its RS485 Modbus support simplifies integration into control panels and monitoring dashboards. With IP65 protection and high-precision analog handling, it stands up to dusty or humid plant conditions while maintaining consistent loop accuracy.
Whether youโre building a new control cabinet or upgrading an outdated PID system, the Autonics TK4L-B4CC is a reliable choice. Its build quality, feature set, and trusted brand backing make it one of the most dependable PID temperature controllers in India. For complete specifications, refer to the Autonics Temperature Controller page at IndMALL.
