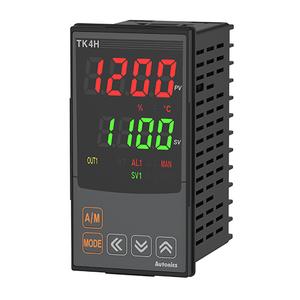

Autonics TK4H-24RN Temperature Controller
The Autonics TK4H-24RN Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, 4-digit 7-segment LED, 50ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TK Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TK4H-24RN |
Autonics TK4H-24RN Temperature Controller – Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 50ms |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃/℉(0.1 to 999.9%) |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 2kV) |
| Option input | CT, Digital(DI-1/2) |
| Protection structure | IP65(front panel) |
| Display accuracy_CT input | ±5% F.S. ±1-digit |
| Input specification | Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel IIRTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120ΩAnalog: 0-100mV, 0-5V, 1-5V, 0-10V0-20mA, 4-20mA |
| Option output | Alarm 1/2 |
| Display accuracy_RTD | •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit•Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
| Display accuracy_Thermocouple | •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit•Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
| Hysteresis(adjustable sensitivity) | RTD/Thermocouples: 1 to 100℃/℉(0.1 to 100.0℃/℉) variable Analog: 1 to 100-digit |
| Control output 1 | Relay(250VAC~ 3A) |
| Display accuracy_Analog | •At room temperature(23℃±5℃): ±0.3% F.S. ±1-digit•Out of range of room temperature: ±0.5℃% F.S. ±1-digit |
| Control output 2 | - |
| Weight | Approx. 211g(approx. 141g) |
The Autonics TK4H-24RN runs on a universal 100–240VAC~ 50/60Hz power supply and delivers fast feedback through a 50ms sampling cycle, making it ideal for tight thermal control loops. It supports a full range of control modes including PID, PI, PD, P, and ON/OFF, allowing engineers to choose the most appropriate algorithm for their application. Equipped with a 4-digit 7-segment LED display, the controller ensures clear process visibility even in low-light control cabinets.
Sensor compatibility is extensive, supporting thermocouples (K, J, T, R, S), RTDs (Pt100Ω, Cu100Ω), and analog inputs (4–20mA, 0–10V), making integration with legacy and modern sensing systems seamless. The device includes a relay control output (250VAC~ 3A) and optional alarm outputs, with support for CT and digital input signals. The front panel is IP65-rated to withstand dust and water exposure, while the internal circuit offers double insulation and 2kV dielectric strength for operator and device safety. Engineers can fine-tune control characteristics using a proportional band range of 0.1 to 999.9°C, and integral/derivative time settings up to 9999 seconds. The unit's compact design (approx. 211g) makes it suitable for dense panel layouts without compromising on durability or performance.
Pharmaceutical companies use this model in sterilizers and drying ovens where uniform heat distribution is critical for regulatory compliance. Electronics manufacturers rely on it for soldering equipment and curing processes, where any variation in temperature can affect product integrity. Its dual alarm output and CT input support energy monitoring and fault alerts—features especially useful in HVAC and chemical plants. The controller’s easy parameter setting, stable performance, and compatibility with multiple sensors make it a valuable tool for both senior engineers and maintenance teams handling real-time process issues.
Whether you're planning a new control panel, upgrading an aging PLC system, or automating a process line, the TK4H-24RN provides stable, scalable, and intelligent thermal management. For full specifications, datasheets, and vendor quotes, visit the official Autonics Temperature Controller section at IndMALL.
