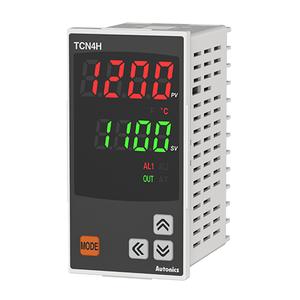

Autonics TCN4H-22R Temperature Controller
The Autonics TCN4H-22R Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 24VAC~ 50/60Hz, 24-48VDC power supply, Relay(250VAC~ 3A) or SSR drive(12VDC) [ON/OFF], 100ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TCN Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TCN4H-22R |
Autonics TCN4H-22R Temperature Controller β Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 24VAC~ 50/60Hz, 24-48VDC |
| Sampling cycle | 100ms |
| Control output | Relay(250VAC~ 3A) or SSR drive(12VDC) [ON/OFF] |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9β/β |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | 0.5 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50β, storage: -20 to 60β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV) |
| Input specification | Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC)RTD: DPt100Ξ©, Cu50Ξ© |
| Option output | Alarm 1/2 |
| Display accuracy_RTD | β’At room temperature(23ΒΊC Β± 5ΒΊC):(PV Β± 0.5% or Β±1ΒΊC, select the higher one) Β± 1-digitβ’Out of room temperature range:(PVΒ± 0.5% or Β±2ΒΊC, select the higher one)Β± 1-digit |
| Display accuracy_Thermocouple | β’At room temperature(23ΒΊC Β± 5ΒΊC):(PV Β± 0.5% or Β±1ΒΊC, select the higher one) Β± 1-digitβ’Out of room temperature range:(PVΒ± 0.5% or Β±2ΒΊC, select the higher one)Β± 1-digit |
| Hysteresis(adjustable sensitivity) | 1 to 100β/β(0.1 to 50.0β/β) variable |
| Weight | Approx. 194g(approx. 124g) |
Mail Us for your needs in Dual Display PID Temperature Controllers TCN4H-22R with budget-friendly prices. The Main Technical Parameters of TCN4H-22R include the power supply range of 24VAC~ 50/60Hz, 24-48VDC, ensuring reliable operation across various applications. The controller boasts a sampling cycle of 100ms for precise temperature monitoring and control. It features a control output of Relay(250VAC~ 3A) or SSR drive(12VDC) [ON/OFF], suitable for versatile control requirements. The control methods include ON/OFF, P, PI, PD, PID, catering to diverse industrial needs. Despite its robust capabilities, the device is lightweight at Approx. 194g(approx. 124g). Operating conditions are optimized for ambient temperatures of -10 to 50β, storage: -20 to 60β, with a humidity range of 35 to 85% RH, storage: 35 to 85% RH for both operation and storage. The controller is 4-digit 7-segment LED, ensuring simplicity in design while maintaining high functionality. Customize Your Experience with a Quote for your requirement of Dual Display PID Temperature Controllers. Experience the difference with our competitive pricing and superior support over other Suppliers.
